fix Item ToolTip Width Fix

[Owsap 14266]

This is the hidden content, please

• Sign In
• or
• Sign Up

Other Mirros

This is the hidden content, please

• Sign In
• or
• Sign Up

(GitHub)

This is the hidden content, please

• Sign In
• or
• Sign Up

(Mega)

Hey M2Dev, I want to share something small but visually appreciated by players that are paying attention to details.
What I'm sharing with you today will solve the issue of item tooltips with large strings, these strings overflow the width of the tooltip causing the text to hang out of the edge, especially when metin stones are attached to your weapon or armor.

BEFORE PREVIEW

Spoiler



AFTER PREVIEW

Spoiler

.

Edited June 17, 2022 by Owsap
Corrected some flaws.

[Hik 124]

Thanks, that was annoying!

[ReFresh 3151]

@OwsapThanks, for the release. Good job! Would be nice, if you can do something like that for question dialogs too, because when you want to drop for example 1000x pcs of some item, the text will overflow the question dialog (sometimes it happens with lower counts of item, for example books, they have a long names). Do something like when the text can overflow the question dialog width, then add 20px to question dialog width.

Edited June 17, 2022 by ReFresh

[HFWhite 976]

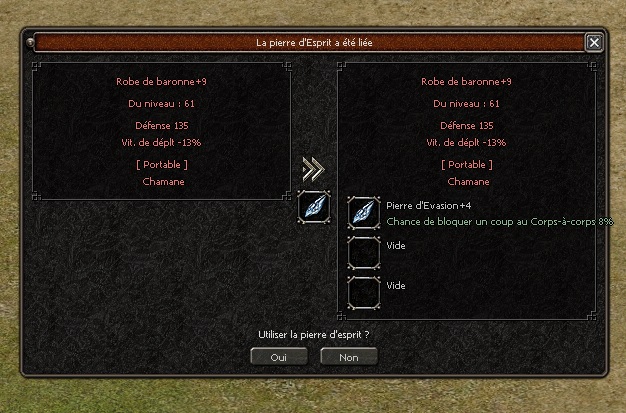

The metin attach part is broken for me

I did everything like the tutorial.

it looks like this:



Edited August 16, 2022 by Metin2 Dev
Core X - External 2 Internal

[Owsap 14266]

7 minutes ago, SCOOB said:

The metin attach part is broken for me

I did everything like the tutorial.

it looks like this:



Here is an example of the AttachMetinDialog, https://metin2.dev/bin/?d7f919364d8cf49c#2t1csJzQNkg9s4jk9tTS6DnEdtGzMPctDhDEwRnX1UMo

Edited August 16, 2022 by Metin2 Dev
Core X - External 2 Internal

[HFWhite 976]

25 minutes ago, Owsap said:

Here is an example of the AttachMetinDialog, https://metin2.dev/bin/?d7f919364d8cf49c#2t1csJzQNkg9s4jk9tTS6DnEdtGzMPctDhDEwRnX1UMo

thank you, all's working fine now

Spoiler





Edited August 16, 2022 by Metin2 Dev
Core X - External 2 Internal

[Owsap 14266]

26 minutes ago, SCOOB said:

thank you, all's working fine now

  Hide contents





Found another problem.. If you're on a player character, some item names are corrupted, for example:





Can you share with us your uittoltip.py? or do you know why does this problem occur? @ Owsap

I don't believe this is related to the fix.
No item positions, sockets, title names or bonus names where changed in any of the code, only the size of the thinboard.

Edited August 16, 2022 by Metin2 Dev
Core X - External 2 Internal

[Syreldar 2735]

Two things @ Owsap.

1.  For sure an overlook, this should be self.newTooltip.AddItemData(itemIndex, metinSlot)



2. You forgot to tell them to add this line:


self.newToolTip.SetPosition(15 + self.oldToolTip.GetWidth() + 45, 38)

Before if localeInfo.IsARABIC():

Edited August 16, 2022 by Metin2 Dev
Core X - External 2 Internal

[Owsap 14266]

3 hours ago, Syreldar said:

Two things @ Owsap.

1.  For sure an overlook, this should be self.newTooltip.AddItemData(itemIndex, metinSlot)



2. You forgot to tell them to add this line:


self.newToolTip.SetPosition(15 + self.oldToolTip.GetWidth() + 45, 38)

Before if localeInfo.IsARABIC():

Thanks, I have updated the files.

Edited August 16, 2022 by Metin2 Dev
Core X - External 2 Internal

[HFWhite 976]

Yay, the latest update fixed my problem.

[avertusss 9]

Nice but it works only with default font. If someone use Tahoma:14 there is the same problem. ToolTip is too small. Can you extend that fix with other fonts?

[ReFresh 3151]

@avertusss

File: root/uiattachmetin.py

Spoiler

Find:
  newToolTip.SetPosition(230 + 20, 38)

Change to:
  newToolTip.SetPosition(300 + 20, 38)

Find:
  newWidth = self.newToolTip.GetWidth() + 230 + 15 + 20

Change to:
  newWidth = self.newToolTip.GetWidth() + 300 + 15 + 20

Find:
  self.SetPosition(x, y)

Change to:
  self.SetCenterPosition()

File: uiscript/attachstonedialog.py

Spoiler

I believe this will fix your problem with font.

[avertusss 9]

15 hours ago, ReFresh said:

@avertusss

File: root/uiattachmetin.py

  Reveal hidden contents

Find:
  newToolTip.SetPosition(230 + 20, 38)

Change to:
  newToolTip.SetPosition(300 + 20, 38)

Find:
  newWidth = self.newToolTip.GetWidth() + 230 + 15 + 20

Change to:
  newWidth = self.newToolTip.GetWidth() + 300 + 15 + 20

Find:
  self.SetPosition(x, y)

Change to:
  self.SetCenterPosition()

File: uiscript/attachstonedialog.py

  Reveal hidden contents

I believe this will fix your problem with font.

It's not fix. It's just change size of tooltip. If someone will have font changer ingame it will looks weird if you make it big af but someone want use small font instead of big.

[jegarba1996 1]

txn you very much for sharing, I followed everything to the letter but I still see everything the same I don't have any errors.




Edited September 11, 2022 by Metin2 Dev
Core X - External 2 Internal

[EnKor 48]

This "fix" is causing this error:



0820 10:31:33723 :: Cannot find item by 2972
0820 10:31:45273 :: Cannot find item by 2972
0820 10:31:45849 :: Cannot find item by 2972
0820 10:31:46098 :: Cannot find item by 2972
0820 10:31:46924 :: Cannot find item by 2972




Any ideia why? I have 100% sure it's something in uitooltip.py

If i follow all the fix i have that error, if i remove it i have none, and if i do all fix, but do not change uitooltip. Error come back!



Edit2

Error come from item 72702 . This item have no description and if i move the mouse over him, i see the uitooltip with no problem, but i got

syserr  0820 10:31:33723 :: Cannot find item by 2972





Any help?



EDIT3

I change this function:

Spoiler

	def __CalculateToolTipWidth(self):
		affectTextLineLenList = []

		metinSocket = self.metinSlot
		if metinSocket > 0:
			for socketIndex in metinSocket:
				if socketIndex:
					item.SelectItem(socketIndex)

					affectType, affectValue = item.GetAffect(0)
					affectString = self.__GetAffectString(affectType, affectValue)
					if affectString:
						affectTextLineLenList.append(len(affectString))

			if self.itemVnum:
				item.SelectItem(self.itemVnum)
			self.metinSlot = None

		if self.toolTipWidth == self.TOOL_TIP_WIDTH:
			if affectTextLineLenList:
				self.toolTipWidth += max(affectTextLineLenList) + 10

		self.AlignTextLineHorizonalCenter()



with:

Spoiler

	def __CalculateToolTipWidth(self):
		affectTextLineLenList = []
		affectType, affectValue = item.GetAffect(0)
		affectString = self.__GetAffectString(affectType, affectValue)
		if affectString:
			affectTextLineLenList.append(len(affectString))

		if self.toolTipWidth == self.TOOL_TIP_WIDTH:
			if affectTextLineLenList:
				self.toolTipWidth += max(affectTextLineLenList) + 10

		self.AlignTextLineHorizonalCenter()



And no more syserr and i belive all tooltips are ok....

But if i have cause anyother error, let me know please

Edited August 20, 2022 by EnKor

[Trudix 56]

Everything works as it should, but if I have the 6/7 bonuses and no stones on the weapon, the problem still persists.

Can you do an update about that?

Edited August 26, 2022 by Metin2 Dev
Core X - External 2 Internal

[LordZiege 368]

i found a litle problem with very long bonuses

Edited August 26, 2022 by Metin2 Dev
Core X - External 2 Internal

[filipw1 2666]

36 minutes ago, LordZiege said:

i found a litle problem with very long bonuses

Fix is fairly simple, just replace function (uiToolTip)

Spoiler

	def __AdjustAttrMaxWidth(self, attrSlot):
		if 0 == attrSlot:
			return self.toolTipWidth

		maxWidth = self.toolTipWidth
		for i in xrange(player.ATTRIBUTE_SLOT_MAX_NUM):
			type = attrSlot[i][0]
			value = attrSlot[i][1]

			attrText = self.AppendTextLine(self.__GetAffectString(type, value))
			(tW, _) = attrText.GetTextSize()
			self.childrenList.remove(attrText)
			self.toolTipHeight -= self.TEXT_LINE_HEIGHT

			maxWidth = max(tW + 12, maxWidth)

		return maxWidth





Edited August 26, 2022 by Metin2 Dev
Core X - External 2 Internal

[Artvr3 20]

@EnKor this code will solve the problems


		#Cannot find item by 'xxx'
		if item.GetItemType() != item.ITEM_TYPE_ARMOR and item.GetItemType() != item.ITEM_TYPE_WEAPON:
			return

@avertusssI have adapted the code to the font size , good for those who use dynamic font


Preview:  https://metin2.download/video/7PY3NxZw6WpdkmH72T8q5Q1SyjCLkCO8/.mp4

here is the complete code

Spoiler

	def __CalculateToolTipWidth(self):
		if item.GetItemType() != item.ITEM_TYPE_ARMOR and item.GetItemType() != item.ITEM_TYPE_WEAPON:
			return

		affectTextLineLenList = []
		metinSocket = self.metinSlot

		if metinSocket:
			for socketIndex in metinSocket:
				if socketIndex:
					item.SelectItem(socketIndex)

					affectType, affectValue = item.GetAffect(0)
					affectString = self.__GetAffectString(affectType, affectValue)
					if affectString:
						affectTextLineLenList.append(len(affectString))

			if self.itemVnum:
				item.SelectItem(self.itemVnum)
			self.metinSlot = None

		if self.toolTipWidth == self.TOOL_TIP_WIDTH:
			if affectTextLineLenList:
				FontSize = int(''.join(filter(str.isdigit, localeInfo.UI_DEF_FONT)))	#Tested on Tahoma font
				if FontSize <= 12:
					self.toolTipWidth += max(affectTextLineLenList) + 25	# the gaps can be adjusted by yourself
				elif FontSize <= 14:
					self.toolTipWidth += max(affectTextLineLenList) + 25 + FontSize*2.5
				elif FontSize <= 16:
					self.toolTipWidth += max(affectTextLineLenList) + 25 + FontSize*3
				elif FontSize == 17:
					self.toolTipWidth += max(affectTextLineLenList) + 25 + FontSize*4
				elif FontSize == 18:
					self.toolTipWidth += max(affectTextLineLenList) + 25 + FontSize*4.5
				else:
					self.toolTipWidth += max(affectTextLineLenList) + 25 + FontSize*8

		self.AlignTextLineHorizonalCenter()





I also shares a modification for resize a ToolTip/SkillToolTip  but it is not perfect and may have errors
if you want to use it go ahead , this is done quickly to check the effect

Preview : https://metin2.download/video/OO2cIBUk0K1Q1bidKF49BvTONh8atFJh/.mp4

Spoiler

#found
	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = TRUE):

#change it

	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = TRUE):
		textLine = ui.TextLine()
		textLine.SetParent(self)
		textLine.SetFontName(self.defFontName)
		textLine.SetPackedFontColor(color)
		textLine.SetText(text)
		textLine.SetOutline()
		textLine.SetFeather(FALSE)
		textLine.Show()

		if centerAlign:
			textLine.SetPosition(self.toolTipWidth/2, self.toolTipHeight)
			textLine.SetHorizontalAlignCenter()
		else:
			textLine.SetPosition(10, self.toolTipHeight)

		self.childrenList.append(textLine)

		(textWidth, textHeight)=textLine.GetTextSize()

		textWidth += 20

		if self.toolTipWidth < textWidth:
			self.toolTipWidth = textWidth

		self.toolTipHeight += self.TEXT_LINE_HEIGHT
		self.AlignTextLineHorizonalCenter()
		return textLine

#if you use:  self.AppendTextLine("[Vnum: %d]"

# Search @ class ItemToolTip @ def AddItemData
		if not item.GetItemDescription():
			self.__CalculateToolTipWidth()

# Add above
		if chr.IsGameMaster(player.GetMainCharacterIndex()):
			self.AppendTextLine("[Vnum: %d]" % itemVnum, ToolTip.SPECIAL_TITLE_COLOR)





Edited September 19, 2022 by Metin2 Dev
Core X - External 2 Internal

[TronTR 1]

Thanks, that was annoying!

[Kaptan Yosun 859]



On 8/20/2022 at 11:17 PM, Trudix said:

Everything works as it should, but if I have the 6/7 bonuses and no stones on the weapon, the problem still persists.

Can you do an update about that?



I can confirm this. If no stone is attached to the item, 6/7 attr will overflow

Edited June 10, 2023 by Debloat

[Volkan 121]



How can I do something like this with accesory socket?

[josehdelaro 7]

Hello, first I would like to thank you, it works very well, I also applied the code that Filip left with auto adjustment, it works very well but my problem is that the stones had no effect and when inserting them into a weapon or armor there is still no change, does anyone know why what's happening?

I make it clear that following the tutorial completely, this problem still happens with the stone tooltip.

working:



not working:







Edited January 13, 2024 by Metin2 Dev International
Core X - External 2 Internal

[ARiver 79]

On 1/13/2024 at 10:03 PM, josehdelaro said:

Hello, first I would like to thank you, it works very well, I also applied the code that Filip left with auto adjustment, it works very well but my problem is that the stones had no effect and when inserting them into a weapon or armor there is still no change, does anyone know why what's happening?

I make it clear that following the tutorial completely, this problem still happens with the stone tooltip.

working:



not working:







Hello, I Have installed this system on my TMP4 files and when installing the main version, long bonus names were getting out of the tooltip,
I still had the issue with some stones descriptions, a syserr client ":: Cannot find item by XXXXX"
I tried what filipw1 posted and it worked fine on long bonus name but it restrain that fix to attributs.
I tried what Artvr3 post for the syserr part and it worked good.
His modification in "def AppendTextLine()" in the class ItemToolTip(ToolTip) worked for the items descriptions and
Stone descriptions and other tooltips like 6/7 bonus.

From what i have noticed
 "def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = TRUE):" is found two times in uitooltip.py:

in class ItemToolTip(ToolTip) :

if you put Artvr3 modification here it will work only on items but don't replace all function adapt it because in this class it's also use to display the red font for item you can't wear.

and in class ToolTip(ui.ThinBoard)
this is what i have done thanks to Artvr3:

Spoiler

#edit def AppendTextLine function in class Tooltip:
  	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = True):
		textLine = ui.TextLine()
		textLine.SetParent(self)
		textLine.SetFontName(self.defFontName)
		textLine.SetPackedFontColor(color)
		textLine.SetText(text)
		textLine.SetOutline()
		textLine.SetFeather(False)
		textLine.Show()

		if centerAlign:
			textLine.SetPosition(self.toolTipWidth/2, self.toolTipHeight)
			textLine.SetHorizontalAlignCenter()

		else:
			textLine.SetPosition(10, self.toolTipHeight)

		self.childrenList.append(textLine)
		## TOOLTIP WIDTH FIX for skills and items attributs credit Artvr3 ##
		(textWidth, textHeight)=textLine.GetTextSize()

		textWidth += 20

		if self.toolTipWidth < textWidth:
			self.toolTipWidth = textWidth

		self.toolTipHeight += self.TEXT_LINE_HEIGHT
		self.AlignTextLineHorizonalCenter()
		##END of fix

		#Original part:
		#self.toolTipHeight += self.TEXT_LINE_HEIGHT
		#self.ResizeToolTip()

		return textLine

#Add in same class Tooltip:
  def AlignTextLineHorizonalCenter(self):
      for child in self.childrenList:
          if type(child).__name__ == "TextLine":
              (x, y) = child.GetLocalPosition()
              child.SetPosition(self.toolTipWidth / 2, y)

      self.ResizeToolTip()



 as Artvr3 said i don't know if this is good but only with the main system from owsap and this modification the tooltips are fine even for all items with bonus and stones and for skills too.



I still got an issue regarding stone attaching though:

Spoiler

https://metin2.download/picture/5gqxr8XTSm5O0UobyNFfL5zOUkXOjdYo/.jpg


the tooltip is still out.

EDIT: i found an issue regarding item icon's in tooltip not being displayed corectly, it seems to be coming from the use of AlignTextLine in AppendTextline, and metin socket  are displayed wrong when an item wearing a stone is in shop (i've only noticed in shop) so for now i will not use this as it is

Edited April 15, 2025 by ARiver
icon tooltip messed up

[4peppe 190]

I applied it correctly but nothing changes from the original, can somebody me?

Edited March 27, 2025 by 4peppe
