official Official Keyboard Settings System

[Owsap 10870]

M2 Download Center

This is the hidden content, please

• Sign In
• or
• Sign Up

  ( Internal )

This is the hidden content, please

• Sign In
• or
• Sign Up

  ( GitHub )

This is the hidden content, please

• Sign In
• or
• Sign Up

  ( MEGA )

As the title indicates, the system allows you to change the default keyboard keys.



Click here to check the tutorial for adding new keys & functions.

Click here for tab targeting key support.

Edited September 25, 2021 by Owsap
Added left alt show name and quick page toggle.

[r00t3r 67]

Wow, very nice !

But i have this problem

Edited August 17, 2022 by Metin2 Dev
Core X - External 2 Internal

[VegasForPresident 21]

Owsap + Mali = Mowsap ? ! ;D

[Owsap 10870]

4 hours ago, r00t3r said:

Wow, very nice !

But i have this problem

Make sure you edited the OnKeyDown and OnKeyUp functions correctly in game.py
Take a look at this full file example (search for ENABLE_KEYCHANGE_SYSTEM)
: https://metin2.dev/bin/?72e463b192aad6b3#68pcPKajtU3EkfS15G9Cr3uD6A8fW1LbAqfXQZ2NPiGA

Edited August 17, 2022 by Metin2 Dev
Core X - External 2 Internal

[r00t3r 67]

6 hours ago, Owsap said:

Make sure you edited the OnKeyDown and OnKeyUp functions correctly in game.py
Take a look at this full file example (search for ENABLE_KEYCHANGE_SYSTEM)
: https://metin2.dev/bin/?72e463b192aad6b3#68pcPKajtU3EkfS15G9Cr3uD6A8fW1LbAqfXQZ2NPiGA

I fixed it, but from f5 upwards no button works.
Why ? I have certain systems on those keys

Edited September 19, 2021 by r00t3r

[Owsap 10870]

3 hours ago, r00t3r said:

I fixed it, but from f5 upwards no button works.
Why ? I have certain systems on those keys

I couldn't identify any problem with the key changing, before posting everything I took the time to implement the system on a clean binary source. Once again, I checked and everything seems to be working correctlty.
Preview 1 / Preview 2

Edited September 4, 2022 by Metin2 Dev
Core X - External 2 Internal

[r00t3r 67]

7 hours ago, Owsap said:

I couldn't identify any problem with the key changing, before posting everything I took the time to implement the system on a clean binary source. Once again, I checked and everything seems to be working correctlty.
Preview 1 / Preview 2

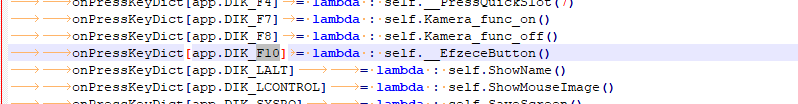

Hi, I don't think I explained well enough. Let's say that I in game.py defined a system on the f10 button. If I press f10 in the game, it will not work





try this

Edited September 4, 2022 by Metin2 Dev
Core X - External 2 Internal

[Jxxkub 62]

For quickslots, if you pressed SHIFT + 1 (default quickslot keybind) it would go to the second slot, not the first.
a simple fix for this:
PythonPlayerInputKeyboard.cpp

case KEY_SLOT_CHANGE_1: SetQuickPage(1); break;
case KEY_SLOT_CHANGE_2: SetQuickPage(2); break;
case KEY_SLOT_CHANGE_3: SetQuickPage(3); break;
case KEY_SLOT_CHANGE_4: SetQuickPage(4); break;

Change to:

case KEY_SLOT_CHANGE_1: SetQuickPage(0); break;
case KEY_SLOT_CHANGE_2: SetQuickPage(1); break;
case KEY_SLOT_CHANGE_3: SetQuickPage(2); break;
case KEY_SLOT_CHANGE_4: SetQuickPage(3); break;

[Owsap 10870]

Thanks @Jxxkub, the quick slot pagination is now fixed, check the repository.

Tutorial for adding new keys & functions.

This is the hidden content, please

• Sign In
• or
• Sign Up

This is just an example to guide the implementation of new keys and functions.

Edited September 20, 2021 by Owsap

[PetePeter 38]

Thanks a lot @Owsap! Excellent work. Do you know than if you have the chat or any private message open when you try to change any key the input going to the chat / private message ?

[VegasForPresident 21]

yoo @ Owsap CAN I GET THIS MA BOY



#if defined(ENABLE_TAB_NEXT_TARGET)
		case KEY_NEXT_TARGET:
			SelectNearTarget();
			break;
#endif



IM TALKING ABOUT THE "SelectNearTarget();"   ( Smiley is the best!)

Edited September 21, 2021 by VegasForPresident

[xP3NG3Rx 22400]

On the official there are no differences between left and right shift, alt nor ctrl. All of them are bound to left+key.
In your code I've seen you made it for both, but in the locale files there are no reference to them.

Spoiler



Edited August 17, 2022 by Metin2 Dev
Core X - External 2 Internal

[Owsap 10870]

1 hour ago, xP3NG3Rx said:

On the official there are no differences between left and right shift, alt nor ctrl. All of them are bound to left+key.
In your code I've seen you made it for both, but in the locale files there are no reference to them.

  Reveal hidden contents



I actually added them just for support in case it ends up beeing used.

Edited August 17, 2022 by Metin2 Dev
Core X - External 2 Internal

[Thrall 261]

Thank you for contribution Owsap!

[HFWhite 771]

Hello @ Owsap and thank you for this system. Can you give us this function please?

SelectNearTarget();



for the tab targeting system, because we get this error:



'SelectNearTarget': identifier not found



[r00t3r 67]

30 minutes ago, SCOOB said:

Hello @ Owsap and thank you for this system. Can you give us this function please?

SelectNearTarget();



for the tab targeting system, because we get this error:



'SelectNearTarget': identifier not found



https://metin2.dev/board/topic/18280-tab-targeting-gf-v161/

[HFWhite 771]

I have the system installed, but it's missing this piece of code to make it work with the Keyboard System:

SelectNearTarget();



[PetePeter 38]

22 minutes ago, SCOOB said:

I have the system installed, but it's missing this piece of code to make it work with the Keyboard System:

SelectNearTarget();



Just do this following:



//Find

#if defined(ENABLE_TAB_NEXT_TARGET)
		case KEY_NEXT_TARGET:
			SelectNearTarget();
			break;
#endif


// Replace by

#if defined(ENABLE_TAB_NEXT_TARGET)
		case KEY_NEXT_TARGET:
		{
			const auto rkPlayer = CPythonPlayer::InstancePtr();
			if (rkPlayer)
			{
				const auto pkInstTarget = CPythonCharacterManager::Instance().GetTabNextTargetPointer(rkPlayer->NEW_GetMainActorPtr());
				if (pkInstTarget)
					rkPlayer->SetTarget(pkInstTarget->GetVirtualID(), true);
			}
			break;
		}
#endif



[HFWhite 771]

Thanks @PetePeter it works.

But the Tab key still works along with the new assigned key.. so you have 2 x keys for Tab Target.

[Owsap 10870]

   Support for Tab Targeting

This is the hidden content, please

• Sign In
• or
• Sign Up

Edited September 25, 2021 by Owsap

[HFWhite 771]

@ Owsap I did that, but now the Tab key won't work.



And I think there's a problem with the Tab Key in general, If I assign a default function(from uikeychange) the Tab Key it won't work.

Edited September 25, 2021 by SCOOB

[PetePeter 38]

31 minutes ago, SCOOB said:

@ Owsap I did that, but now the Tab key won't work.



And I think there's a problem with the Tab Key in general, If I assign a default function(from uikeychange) the Tab Key it won't work.

You must have done something wrong, for me everything working fine

[Vaynz 2334]



I received some messages at odds with the problem at switchbot F5 (Keyboard Offical Setting). Here is a short solution. "wHy Is NoT WoRkInG sWiTcHbOt", of course is not working because is not defined in game.py, is defined in interfacemodule.py. There is short solution for your problem, can be improved as well.

		onPressKeyDict[app.DIK_F5]    = lambda : self.interface.ToggleSwitchbotWindow()

---- Let's start --- Binary

PythonPlayerInputKeyboard.cpp

Search: case KEY_SHOW_NAME: PyCallClassMemberFunc(m_ppyGameWindow, "ShowName", Py_BuildValue("()")); break;

Add after: case KEY_SWITCHBOT_W: PyCallClassMemberFunc(m_ppyGameWindow, "Switchbot", Py_BuildValue("()")); break;

Gametype.h

Search: KEY_PASSIVE_ATTR2,

Add after: 	KEY_SWITCHBOT_W,

PythonPlayerModule.cpp

Search: PyModule_AddIntConstant(poModule, "KEY_PASSIVE_ATTR2", KEY_PASSIVE_ATTR2);

Add after: PyModule_AddIntConstant(poModule, "KEY_SWITCHBOT_W", KEY_SWITCHBOT_W);

--- Python part --- root

Uikeychange.py

Search: self.KeySlotMax = 66

Replace: self.KeySlotMax = 67
...
Search: KeyUiInfoDick[65] = app.DIK_X

Add after: KeyUiInfoDick[66] = app.DIK_F5
...
Search: KeyFunctionInfo[65] = player.KEY_SHOW_NAME

Add after: KeyFunctionInfo[66] = player.KEY_SWITCHBOT_W
...
Now game.py

Search self.onClickKeyDict=onClickKeyDict

Add after
	def Switchbot(self):
		import LURMxMaKZJqliYt2QSHG as chat
		chat.AppendChat(chat.CHAT_TYPE_INFO, "Test if work")
		self.interface.ToggleSwitchbotWindow()
...

You can remove chat.appendchat and import, i tested if is sending. Good luck !



Edited September 30, 2021 by Vaynz

[xP3NG3Rx 22400]

I just discovered a small bug with the OnKeyDown function in python which is there even on the official servers too.
It will never execute the binary side OnKeyDown with the ALT key when the KeySettingBoard is opened.
Howover the OnKeyUp always executes. So the quickslot paging will be decreased all the time when you hit the ALT key.

[Owsap 10870]

19 minutes ago, xP3NG3Rx said:

I just discovered a small bug with the OnKeyDown function in python which is there even on the official servers too.
It will never execute the binary side OnKeyDown with the ALT key when the KeySettingBoard is opened.
Howover the OnKeyUp always executes. So the quickslot paging will be decreased all the time when you hit the ALT key.

Confirmed, I guess a workaround for this is to check if the key change window is open then ignore the ALT key function until the key change window is closed?
