Multi Text Line

[Mali 61380]

M2 Download Center

This is the hidden content, please

• Sign In
• or
• Sign Up

( Internal )

This is the hidden content, please

• Sign In
• or
• Sign Up

( GitHub )

Just add \n example:

Spoiler

Quote

this is test message\ntest heree\ntestttt





[Sherer 614]

You can make SplitMultiLine as static to save a bit of memory (since this function will be called plenty of times).

[xP3NG3Rx 24824]

Also if you are smart enough as the webzen developers weren't, you will put an exception where the render of the textline class will skip the splitting on special places like whisper nameinput .

Doesn't matter if they have added the DisableEnterToken if they didn't apply everywhere where they supposed to.

And when you report this problem on their forum(gayforge obv..), they delete the topic, and giving a single piece of nothing about it.

[Mali 61380]

1 hour ago, xP3NG3Rx said:

Also if you are smart enough as the webzen developers weren't, you will put an exception where the render of the textline class will skip the splitting on special places like whisper nameinput .

Doesn't matter if they have added the DisableEnterToken if they didn't apply everywhere where they supposed to.

And when you report this problem on their forum(gayforge obv..), they delete the topic, and giving a single piece of nothing about it.

thanks for reply

I was just thinking about this, and I added an option SetEnterToken(bool)

Default setting(m_EnterToken) is false, you can change at GrpTextInstance.cpp, or simply add code at ui/TextLine constructor

For Enable Example:

Testt = ui.TextLine()
Testt.SetParent(self)
Testt.SetEnterToken(True) ### this
Testt.SetText("this is test message\ntest here\ntesttt")



[Gurgarath 3693]

The idea behind it is really cool and way cleaner than the official way of doing it. However, here are a few inconsistensies that you can see with this function. Of course it needs to be enhanced with further checks (as xP3NG3Rx said above) and your function is neat.



For example, with the official (not fully) reversed WJ_MULTI_TEXTLINE and a few checks I came up with this :





Good idea and method however, thank you!



Edit : Well you answered two minutes before my post and updated your repo, this message may be unrelevant now

Edited May 6, 2020 by Gurgarath

[xP3NG3Rx 24824]

Yeah, lets say they implemented this feature properly, but unfortunately they forgot to use it properly .

[Johnny69 519]

If you split only by "\n" and not "\\n" you won't need to add that check for editline.

Also I know default open file function from python 2.7 escape \n automaticaly but you can fix the \n in two ways: (I'm talking about locale_game / locale_interface)

1. replace all "\\n" in line with "\n"

2. open the file with codecs.open and encoding "string_escape"



One ideea though for your code: split the code where the text is initialized and after this save only the positions where \n was in a vector, after that in Render function you can use the position vector to rearange the text y position. Something like this (https://metin2.download/picture/f9LxxwZljyoXvU1nuSq3rwgoHx7xQYov/.png)



PS: I don't know how official did it but they seem stupid



Good job

Edited August 26, 2022 by Metin2 Dev
Core X - External 2 Internal

[Owsap 14288]

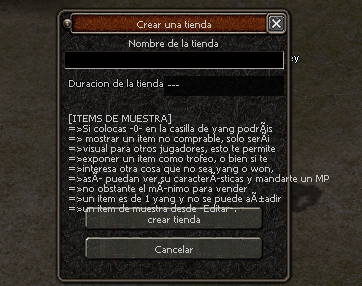

Especially their guild comment window, you can spam \n and the text will look so buggy.
This is how it looks like rofl.



Obs: This "system" was implemented some time ago and this print is from today rofl... still the same and like penger said, you report the problem and they ignore your report.



For the chat window I had to disable the token from the input and even from text tail, since it's a good ideia.

By looking through the official python root they cleary forgot to add the DisableEnterToken() on some scripts....

# Simply disabling the token in the functions did the trick.

# @ PythonChat.cpp

# @ void CWhisper::AppendChat
#ifdef WJ_MULTI_TEXTLINE
	pChatLine->Instance.DisableEnterToken();
#endif

# @ void CPythonChat::AppendChat
#ifdef WJ_MULTI_TEXTLINE
	pChatLine->Instance.DisableEnterToken();
#endif

# @ PythonTextTail.cpp
# @ void CPythonTextTail::RegisterInfoTail
#ifdef WJ_MULTI_TEXTLINE
		pTextTail->pTextInstance->DisableEnterToken();
#endif

# @ CPythonTextTail::TTextTail * CPythonTextTail::RegisterTextTail
#ifdef WJ_MULTI_TEXTLINE
	pTextTail->pTextInstance->DisableEnterToken();
#endif

# @ void CPythonTextTail::RegisterChatTail
#ifdef WJ_MULTI_TEXTLINE
		pTextTail->pTextInstance->DisableEnterToken();
#endif



Edited August 25, 2022 by Metin2 Dev
Core X - External 2 Internal

[Geoffrey 9330]

Archive Updated.

[Nazox 473]

Thanks, Work Great

would there be any way to add color? for curiosity

Edited August 17, 2022 by Metin2 Dev
Core X - External 2 Internal

[EAkar 10]

How can I use \n in locale_game.txt file.

[Owsap 14288]

Here is a little update for the tooltips and a small correction for horizontal & vertical positions.

EterLib/GrpTextInstance.cpp

Spoiler

/// 1.
// Search @ WORD CGraphicTextInstance::GetTextLineCount
	return wLineCount;

// Add above
#if defined(WJ_MULTI_TEXTLINE)
	wLineCount += multi_text.size();
#endif

/// 4.
// Search
void CGraphicTextInstance::SetPosition

// Replace entire function with
void CGraphicTextInstance::SetPosition(float fx, float fy, float fz)
{
	m_v3Position.x = fx;
	m_v3Position.y = fy;
	m_v3Position.z = fz;

#if defined(WJ_MULTI_TEXTLINE)
	for (std::size_t i = 0; i < multi_text.size(); i++)
	{
		const auto& it = multi_text.at(i);
		it->SetPosition(fx, fy + (i + 1) * m_textHeight, fz);

		it->SetHorizonalAlign(m_hAlign);
		it->SetVerticalAlign(m_vAlign);

		it->SetOutline(m_isOutline);
		it->SetFeather(m_fFontFeather);
	}
#endif
}



EterLib/GrpTextInstance.h

Spoiler

/// 1.
// Search
	WORD GetTextLineCount();

// Add below
	WORD GetLineHeight() { return m_textHeight; }
	void SetLineHeight(const int c_iLineHeight) { m_textHeight = c_iLineHeight; }



EterLib/PythonWindow.cpp

Spoiler

/// 1.
// Search
	void CTextLine::SetMultiLine(BOOL bFlag)
	{
		m_TextInstance.SetMultiLine(bFlag ? true : false);
	}

// Add below
	WORD CTextLine::GetTextLineCount() { return m_TextInstance.GetTextLineCount(); }
	WORD CTextLine::GetLineHeight() { return m_TextInstance.GetLineHeight(); }
	void CTextLine::SetLineHeight(int iHeight) { m_TextInstance.SetLineHeight(iHeight); }



EterLib/PythonWindow.h

Spoiler

/// 1.
// Search
		void GetTextSize(int* pnWidth, int* pnHeight);

// Add below
		WORD GetTextLineCount();
		WORD GetLineHeight();
		void SetLineHeight(int iHeight);



Root/uiToolTip.py

Spoiler

""" 1. """
# Search
def SplitDescription(desc, limit):

# Replace the entire method with
def SplitDescription(desc, limit):
	total_tokens = desc.split()
	line_tokens = []
	line_len = 0
	lines = []

	for token in total_tokens:
		if "|" in token:
			sep_pos = token.find("|")
			line_tokens.append(token[:sep_pos])
			lines.append(" ".join(line_tokens))
			line_len = len(token) - (sep_pos + 1)
			line_tokens = [token[sep_pos+1:]]
		elif app.WJ_MULTI_TEXTLINE and "\\n" in token:
			sep_pos = token.find("\\n")
			line_tokens.append(token[:sep_pos])

			lines.append(" ".join(line_tokens))
			line_len = len(token) - (sep_pos + 2)
			line_tokens = [token[sep_pos+2:]]
		else:
			line_len += len(token)
			if len(line_tokens) + line_len > limit:
				lines.append(" ".join(line_tokens))
				line_len = len(token)
				line_tokens = [token]
			else:
				line_tokens.append(token)

	if line_tokens:
		lines.append(" ".join(line_tokens))

	return lines

""" 2. """
# Search
	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = True):

# Replace the entire method with
	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = True):
		textLine = ui.TextLine()
		textLine.SetParent(self)
		textLine.SetFontName(self.defFontName)
		textLine.SetPackedFontColor(color)
		textLine.SetText(text)
		textLine.SetOutline()
		textLine.SetFeather(False)
		if app.WJ_MULTI_TEXTLINE:
			textLine.SetLineHeight(self.TEXT_LINE_HEIGHT)

		if centerAlign:
			textLine.SetPosition(self.toolTipWidth / 2, self.toolTipHeight)
			textLine.SetHorizontalAlignCenter()
		else:
			textLine.SetPosition(10, self.toolTipHeight)

		textLine.Show()

		self.childrenList.append(textLine)

		if app.WJ_MULTI_TEXTLINE:
			lineCount = textLine.GetTextLineCount()
			self.toolTipHeight += self.TEXT_LINE_HEIGHT * lineCount
		else:
			self.toolTipHeight += self.TEXT_LINE_HEIGHT

		self.ResizeToolTip()

		return textLine





[filipw1 2669]

Vertical align broken

First line is aligned correctly but next ones are off.

Fixed



This is the hidden content, please

• Sign In
• or
• Sign Up

Edited October 14, 2023 by Metin2 Dev International
Core X - External 2 Internal

[nosacz26 2]

is this compatibile with owsap's set_item system?

[Filachilla 66]

On 2/23/2023 at 1:59 AM, Owsap said:

Here is a little update for the tooltips and a small correction for horizontal & vertical positions.

EterLib/GrpTextInstance.cpp

  Reveal hidden contents

/// 1.
// Search @ WORD CGraphicTextInstance::GetTextLineCount
	return wLineCount;

// Add above
#if defined(WJ_MULTI_TEXTLINE)
	wLineCount += multi_text.size();
#endif

/// 4.
// Search
void CGraphicTextInstance::SetPosition

// Replace entire function with
void CGraphicTextInstance::SetPosition(float fx, float fy, float fz)
{
	m_v3Position.x = fx;
	m_v3Position.y = fy;
	m_v3Position.z = fz;

#if defined(WJ_MULTI_TEXTLINE)
	for (std::size_t i = 0; i < multi_text.size(); i++)
	{
		const auto& it = multi_text.at(i);
		it->SetPosition(fx, fy + (i + 1) * m_textHeight, fz);

		it->SetHorizonalAlign(m_hAlign);
		it->SetVerticalAlign(m_vAlign);

		it->SetOutline(m_isOutline);
		it->SetFeather(m_fFontFeather);
	}
#endif
}



EterLib/GrpTextInstance.h

  Reveal hidden contents

/// 1.
// Search
	WORD GetTextLineCount();

// Add below
	WORD GetLineHeight() { return m_textHeight; }
	void SetLineHeight(const int c_iLineHeight) { m_textHeight = c_iLineHeight; }



EterLib/PythonWindow.cpp

  Reveal hidden contents

/// 1.
// Search
	void CTextLine::SetMultiLine(BOOL bFlag)
	{
		m_TextInstance.SetMultiLine(bFlag ? true : false);
	}

// Add below
	WORD CTextLine::GetTextLineCount() { return m_TextInstance.GetTextLineCount(); }
	WORD CTextLine::GetLineHeight() { return m_TextInstance.GetLineHeight(); }
	void CTextLine::SetLineHeight(int iHeight) { m_TextInstance.SetLineHeight(iHeight); }



EterLib/PythonWindow.h

  Reveal hidden contents

/// 1.
// Search
		void GetTextSize(int* pnWidth, int* pnHeight);

// Add below
		WORD GetTextLineCount();
		WORD GetLineHeight();
		void SetLineHeight(int iHeight);



Root/uiToolTip.py

  Reveal hidden contents

""" 1. """
# Search
def SplitDescription(desc, limit):

# Replace the entire method with
def SplitDescription(desc, limit):
	total_tokens = desc.split()
	line_tokens = []
	line_len = 0
	lines = []

	for token in total_tokens:
		if "|" in token:
			sep_pos = token.find("|")
			line_tokens.append(token[:sep_pos])
			lines.append(" ".join(line_tokens))
			line_len = len(token) - (sep_pos + 1)
			line_tokens = [token[sep_pos+1:]]
		elif app.WJ_MULTI_TEXTLINE and "\\n" in token:
			sep_pos = token.find("\\n")
			line_tokens.append(token[:sep_pos])

			lines.append(" ".join(line_tokens))
			line_len = len(token) - (sep_pos + 2)
			line_tokens = [token[sep_pos+2:]]
		else:
			line_len += len(token)
			if len(line_tokens) + line_len > limit:
				lines.append(" ".join(line_tokens))
				line_len = len(token)
				line_tokens = [token]
			else:
				line_tokens.append(token)

	if line_tokens:
		lines.append(" ".join(line_tokens))

	return lines

""" 2. """
# Search
	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = True):

# Replace the entire method with
	def AppendTextLine(self, text, color = FONT_COLOR, centerAlign = True):
		textLine = ui.TextLine()
		textLine.SetParent(self)
		textLine.SetFontName(self.defFontName)
		textLine.SetPackedFontColor(color)
		textLine.SetText(text)
		textLine.SetOutline()
		textLine.SetFeather(False)
		if app.WJ_MULTI_TEXTLINE:
			textLine.SetLineHeight(self.TEXT_LINE_HEIGHT)

		if centerAlign:
			textLine.SetPosition(self.toolTipWidth / 2, self.toolTipHeight)
			textLine.SetHorizontalAlignCenter()
		else:
			textLine.SetPosition(10, self.toolTipHeight)

		textLine.Show()

		self.childrenList.append(textLine)

		if app.WJ_MULTI_TEXTLINE:
			lineCount = textLine.GetTextLineCount()
			self.toolTipHeight += self.TEXT_LINE_HEIGHT * lineCount
		else:
			self.toolTipHeight += self.TEXT_LINE_HEIGHT

		self.ResizeToolTip()

		return textLine





ui.py?

[ARiver 79]

On 5/22/2024 at 6:09 PM, Filachilla said:

ui.py?

Hello I think i had the same issue,

I try to update with What Owsap posted and had errors regarding module for SetLineHeight.

I cooked something to make it work but i don't know if this is fine (i am no dev).



PythonWindowManagerModule.cpp:

Spoiler

//search:
#if defined(WJ_MULTI_TEXTLINE)
PyObject* wndSetEnterToken(PyObject* poSelf, PyObject* poArgs)
{
  ...
}


//Add:
PyObject* wndSetLineHeight(PyObject* poSelf, PyObject* poArgs)
{
	UI::CWindow* pWindow;
	int value;
	if (!PyTuple_GetWindow(poArgs, 0, &pWindow) || !PyTuple_GetInteger(poArgs, 1, &value))
		return Py_BuildException();

	((UI::CTextLine*)pWindow)->SetLineHeight(value);

	return Py_BuildNone();
}

PyObject* wndGetTextLineCount(PyObject* poSelf, PyObject* poArgs)
{
	UI::CWindow* pWindow;
	if (!PyTuple_GetWindow(poArgs, 0, &pWindow))
		return Py_BuildException();

	return Py_BuildValue("i", ((UI::CTextLine*)pWindow)->GetTextLineCount());
}

PyObject* wndGetLineHeight(PyObject* poSelf, PyObject* poArgs)
{
	UI::CWindow* pWindow;
	if (!PyTuple_GetWindow(poArgs, 0, &pWindow))
		return Py_BuildException();

	return Py_BuildValue("i", ((UI::CTextLine*)pWindow)->GetLineHeight());
}


//Search in void initwndMgr():
#if defined(WJ_MULTI_TEXTLINE)
		{ "SetEnterToken",				wndSetEnterToken,					METH_VARARGS },


//Add:
		{ "SetLineHeight",				wndSetLineHeight,					METH_VARARGS },
		{ "GetTextLineCount",			wndGetTextLineCount,				METH_VARARGS },
		{ "GetLineHeight",				wndGetLineHeight,					METH_VARARGS },





ui.py:

Spoiler

##Search:
	if app.WJ_MULTI_TEXTLINE:
		def SetEnterToken(self, bool):
			wndMgr.SetEnterToken(self.hWnd, bool)

##Add:
		def SetLineHeight(self, value):
			wndMgr.SetLineHeight(self.hWnd, value)

		def GetLineHeight(self):
			return wndMgr.GetLineHeight(self.hWnd)

		def GetTextLineCount(self):
			return wndMgr.GetTextLineCount(self.hWnd)





It's working fine for me now but if i can get an opinion about it,

i just watch how other module were made in the same files and "produce" that.



Thanks for this system and and for the updates made by Owsap and filipw1.



Best regards, ARiver



Edit:

I looked further into this :





Those functions can be found here ! I left what i've write here but better take  the 3 functions from johnny post i guess.

Edited April 8, 2025 by ARiver
Found the functions in another post
