WorldEditor ReMIX

martysama0134 · December 31, 2025

10 hours ago, Denizeri24 said:

Is it still mandatory for the files to be located on the D drive?

You can mount d: from folder (check mount_d.bat)

 @cd %~dp0
 @subst d: .
 @pause

You can also load the files via pack (Index + eix epk required). If you do this, keep textureset/ and property/ unpacked.

habibithearabcat · December 31, 2025

i have the problem that it says that the program cant load the assasin_novice.gr2 and the whole program works but there is not even a texture and i have to load them manually. Is this a problem with the files that i have or there is another way around it to validate my files?

KolenMG · January 14

Dont know if anyone ever encountered this, but this was my main problem since day1 when I tried to bring together assets from vicecity to recreate the map in metin2.

Overall, when placing a model, when its placed it gets a little bit down on its Z axis than the preview.

The video below should be more explanatory.

https://metin2.download/video/9gYrUUBUDKjr1QT5zkVes840GDOYSWjD/.mp4 -
WorldEditor V49

Not a hate or smth like that, mostly posting to see any workaround about this or to start a discussion.

Edited February 19 by Metin2 Dev International
Core X - External 2 Internal

Horus · January 16

On 12/15/2025 at 9:52 PM, martysama0134 said:

V49 out!

Extended with Python38 (everything is embedded inside lib38/ folder, dll and scripts too)
Added Automatic Grass placement via python script
Added Automatic Grass removal via python script

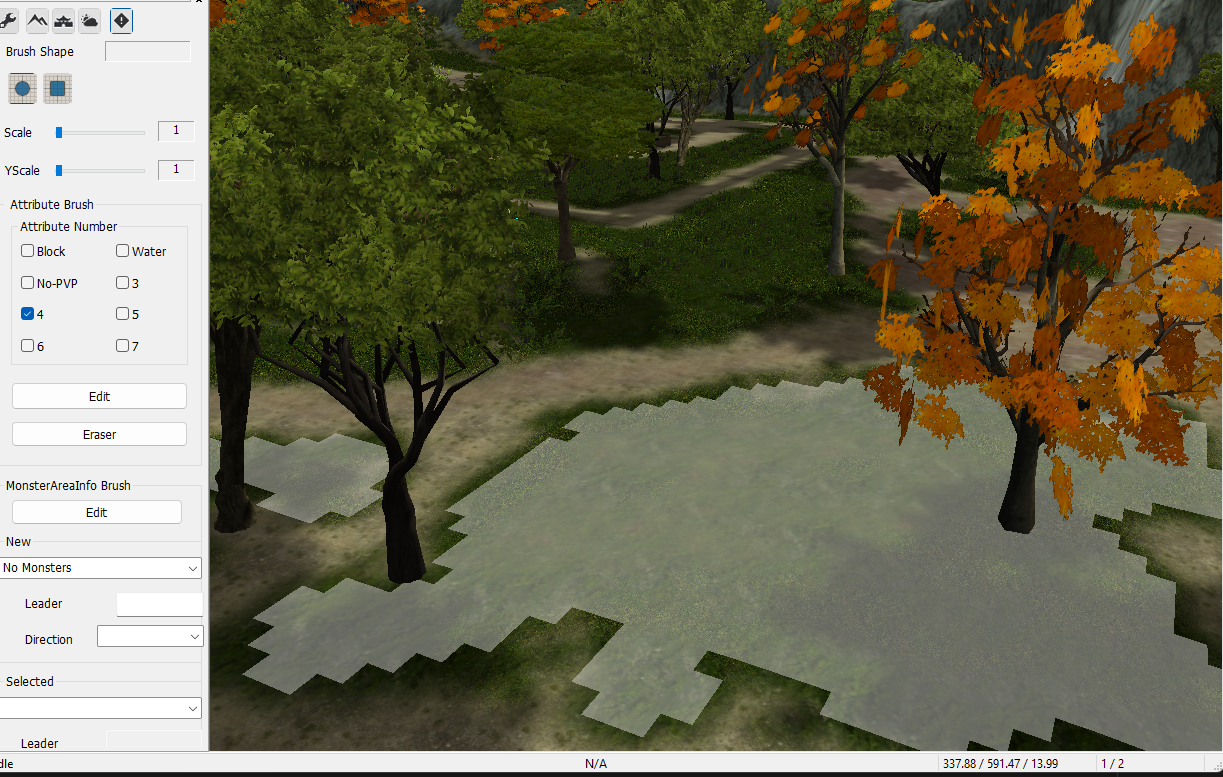

Added Automatic Block Attr on stoneXX texture areas, and BanPK on tileXX texture areas via python script
Added Automatic Object Replacement id1 → id2 via python script
Added Automatic Cleanup of Water if Water Attr is missing.

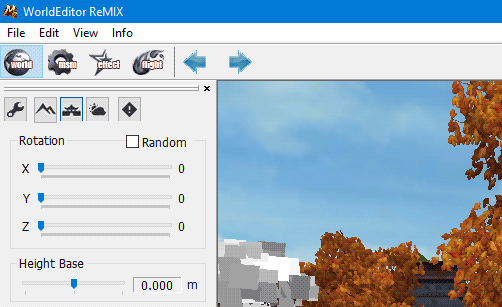

Added Rotation from common pivot of selected objects with MouseWheel+8 shortcut.
Added side window opening when F5 is pressed via python script
Fixed v48 create map VisibleTerrain regression active by default.
Fixed v48 manifest crash regression.
Removed gate textures from Export Map skiplist.
Adjusted Undo/Redo teleport coordinates.

List of python functions and constants:

Reveal hidden contents

WorldEditor Functions and Constants
=====================================

FUNCTIONS
=========

Map General
-----------
WorldEditor.IsMapReady() -> int
WorldEditor.GetSceneType() -> int
WorldEditor.GetBaseXY() -> (int, int)
WorldEditor.GetTerrainCount() -> (int, int)
WorldEditor.GetMapType() -> int
WorldEditor.GetEnvironmentDataName() -> str

Property
--------
WorldEditor.GetPropertyType(ext: int) -> str
WorldEditor.GetPropertyExtension(type: str) -> int
WorldEditor.GetObjectList() -> tuple

Camera
------
WorldEditor.GetTargetPosition() -> (float, float)
WorldEditor.UpdateTargetPosition(x: int, y: int) -> None
WorldEditor.GetCameraPosition() -> (float, float, float)
WorldEditor.GetCameraTarget() -> (float, float, float)
WorldEditor.SetCameraPosition(x: float, y: float, z: float) -> None
WorldEditor.SetCameraTarget(x: float, y: float, z: float) -> None

Map Draw
--------
WorldEditor.GetHeightPixel(x: int, y: int) -> int
WorldEditor.DrawHeightPixel(x: int, y: int, height: int) -> None

Terrain Utilities
-----------------
WorldEditor.GetHeightAt(x: float, y: float) -> int
WorldEditor.SetHeightAt(x: float, y: float, height: int) -> None
WorldEditor.GetTerrainSize() -> int
WorldEditor.WorldToTerrainCoords(x: float, y: float) -> (int, int, int, int)
WorldEditor.TerrainToWorldCoords(terrainNumX: int, terrainNumY: int, cellX: int, cellY: int) -> (int, int)

Map Information
--------------
WorldEditor.GetMapName() -> str
WorldEditor.IsMapLoaded() -> int
WorldEditor.GetMapBounds() -> (int, int, int, int)

Batch Operations
----------------
WorldEditor.DrawHeightRegion(x1: int, y1: int, x2: int, y2: int, height: int) -> None
WorldEditor.GetHeightRegion(x1: int, y1: int, x2: int, y2: int) -> list

Object Selection
----------------
WorldEditor.GetSelectedObjectCount() -> int
WorldEditor.GetSelectedObjectName() -> str
WorldEditor.SelectObject(index: int) -> None
WorldEditor.SelectObjectsByRect(x1: float, y1: float, x2: float, y2: float) -> int
WorldEditor.CancelSelect() -> None
WorldEditor.IsObjectSelected(index: int) -> int
WorldEditor.GetPickedObjectIndex() -> int

Object Manipulation
-------------------
WorldEditor.GetObjectCount() -> int
WorldEditor.GetObjectData(index: int) -> (float, float, float, int, float, float, float)
WorldEditor.MoveSelectedObject(x: float, y: float) -> None
WorldEditor.MoveSelectedObjectHeight(height: float) -> None
WorldEditor.ResetSelectedObjectHeightToTerrain() -> None
WorldEditor.RotateSelectedObject(yaw: float, pitch: float, roll: float) -> None
WorldEditor.SetSelectedObjectRotation(yaw: float, pitch: float, roll: float) -> None
WorldEditor.RotateSelectedObjectAroundPivot(rollDeg: float) -> None
WorldEditor.DeleteSelectedObject() -> None
WorldEditor.DeleteObjectsByCRCList(crcList: list, scope: int = 1) -> int
WorldEditor.ReplaceObjectsByCRC(sourceCrc: int, targetCrc: int, scope: int = 1) -> int
WorldEditor.InsertObject(x: float, y: float, z: float, yaw: float, pitch: float, roll: float, scale: int, crc: int) -> None
WorldEditor.PlaceGrassPropsByTexture(textureIds: list, grassCrcs: list, minDistanceMeters: float = 10.0) -> (int, int)
WorldEditor.GetSelectionPivot() -> (float, float, float)

Object Portal
-------------
WorldEditor.SetSelectedObjectPortalNumber(portalID: int) -> None
WorldEditor.DelSelectedObjectPortalNumber(portalID: int) -> None
WorldEditor.GetSelectedObjectPortalNumbers() -> list

Attribute Manipulation
----------------------
WorldEditor.GetAttrAt(x: float, y: float) -> int
WorldEditor.SetAttrAt(x: float, y: float, attrFlag: int) -> None
WorldEditor.IsAttrOn(x: float, y: float, attrFlag: int) -> int
WorldEditor.DrawAttrBrush(x: float, y: float, attrFlag: int, brushSize: int, erase: int) -> None
WorldEditor.GetSelectedAttrFlag() -> int
WorldEditor.SetSelectedAttrFlag(attrFlag: int) -> None
WorldEditor.ResetToDefaultAttr() -> int

Refresh Functions
-----------------
WorldEditor.RefreshArea() -> None
WorldEditor.RefreshSelectedInfo() -> None
WorldEditor.RefreshObjectHeight(x: float, y: float, halfSize: float) -> None
WorldEditor.RefreshTerrain() -> None
WorldEditor.RefreshEnvironment() -> None
WorldEditor.ReloadMap() -> int

Save Functions
----------------
WorldEditor.SaveMap(mapName: str = None) -> int
WorldEditor.SaveMapProperty() -> int
WorldEditor.SaveMapSetting() -> int
WorldEditor.SaveTerrains() -> int
WorldEditor.SaveAreas() -> int

Utility Functions
-----------------
WorldEditor.GetObjectDataCount() -> int
WorldEditor.GetEditArea() -> (int, int, int, int, int, int)
WorldEditor.SetBrushSize(size: int) -> None
WorldEditor.GetBrushSize() -> int
WorldEditor.SetBrushStrength(strength: int) -> None
WorldEditor.GetBrushStrength() -> int
WorldEditor.CopySelectedObjects() -> None
WorldEditor.PasteObjects(x: float, y: float, z: float) -> None
WorldEditor.SetWireframe(enabled: int) -> None
WorldEditor.IsWireframe() -> int

Water Functions
---------------
WorldEditor.GetWaterHeight(x: float, y: float) -> int
WorldEditor.DrawWaterBrush(x: float, y: float, waterHeight: int, brushSize: int, erase: int) -> None
WorldEditor.SetAllWaterHeight(height: int) -> None
WorldEditor.GetBrushWaterHeight() -> int
WorldEditor.SetBrushWaterHeight(height: int) -> None
WorldEditor.SetEraseWater(enabled: int) -> None
WorldEditor.PreviewEditWater() -> None

Height Brush Functions
----------------------
WorldEditor.DrawHeightBrush(x: float, y: float, brushShape: int, brushType: int, brushSize: int, brushStrength: int) -> None
WorldEditor.SetBrushShape(shape: int) -> None
WorldEditor.GetBrushShape() -> int
WorldEditor.SetBrushType(type: int) -> None
WorldEditor.GetBrushType() -> int
WorldEditor.SetBrushSizeY(size: int) -> None
WorldEditor.GetBrushSizeY() -> int
WorldEditor.SetMaxBrushSize(size: int) -> None
WorldEditor.SetMaxBrushStrength(strength: int) -> None

Texture Brush Functions
-----------------------
WorldEditor.DrawTextureBrush(x: float, y: float, textureList: list, brushSize: int, erase: int, drawOnlyOnBlankTile: int) -> None
WorldEditor.SetEraseTexture(enabled: int) -> None
WorldEditor.SetDrawOnlyOnBlankTile(enabled: int) -> None
WorldEditor.AddTerrainTexture(filename: str) -> int
WorldEditor.RemoveTerrainTexture(texNum: int) -> int
WorldEditor.ResetTerrainTexture() -> None
WorldEditor.InitBaseTexture(mapName: str = None) -> int

Environment and Lighting Functions
----------------------------------
WorldEditor.SetLightDirection(x: float, y: float, z: float) -> None
WorldEditor.SetLightDiffuseColor(r: float, g: float, b: float) -> None
WorldEditor.SetLightAmbientColor(r: float, g: float, b: float) -> None
WorldEditor.EnableLight(enabled: int) -> None
WorldEditor.SetFogColor(r: float, g: float, b: float) -> None
WorldEditor.SetFogNearDistance(distance: float) -> None
WorldEditor.SetFogFarDistance(distance: float) -> None
WorldEditor.EnableFog(enabled: int) -> None
WorldEditor.SetWindStrength(strength: float) -> None
WorldEditor.SetWindRandom(random: float) -> None
WorldEditor.EnableWind(enabled: int) -> None

Material Functions
-----------------
WorldEditor.SetMaterialDiffuseColor(r: float, g: float, b: float) -> None
WorldEditor.SetMaterialAmbientColor(r: float, g: float, b: float) -> None
WorldEditor.SetMaterialEmissiveColor(r: float, g: float, b: float) -> None

Filtering Functions
-------------------
WorldEditor.SetFilteringColor(r: float, g: float, b: float) -> None
WorldEditor.SetFilteringAlpha(alpha: float) -> None
WorldEditor.SetFilteringAlphaSrc(src: int) -> None
WorldEditor.SetFilteringAlphaDest(dest: int) -> None
WorldEditor.EnableFiltering(enabled: int) -> None

Editing Mode Functions
----------------------
WorldEditor.SetHeightEditing(enabled: int) -> None
WorldEditor.IsHeightEditing() -> int
WorldEditor.SetTextureEditing(enabled: int) -> None
WorldEditor.IsTextureEditing() -> int
WorldEditor.SetWaterEditing(enabled: int) -> None
WorldEditor.IsWaterEditing() -> int
WorldEditor.SetAttrEditing(enabled: int) -> None
WorldEditor.IsAttrEditing() -> int
WorldEditor.SetMonsterAreaInfoEditing(enabled: int) -> None
WorldEditor.IsMonsterAreaInfoEditing() -> int
WorldEditor.EditingStart() -> None
WorldEditor.EditingEnd() -> None
WorldEditor.SetEraseAttr(enabled: int) -> None

Undo/Redo Functions
-------------------
WorldEditor.BackupObject() -> None
WorldEditor.BackupTerrain() -> None
WorldEditor.BackupObjectCurrent() -> None
WorldEditor.BackupTerrainCurrent() -> None
WorldEditor.Undo() -> None
WorldEditor.Redo() -> None
WorldEditor.CanUndo() -> int
WorldEditor.CanRedo() -> int
WorldEditor.GetUndoCount() -> int
WorldEditor.GetRedoCount() -> int
WorldEditor.ClearUndoBuffer() -> None

Map Creation Functions
---------------------
WorldEditor.NewMap(mapName: str) -> int
WorldEditor.CreateNewOutdoorMap() -> int
WorldEditor.SetNewMapName(name: str) -> None
WorldEditor.SetNewMapSizeX(size: int) -> None
WorldEditor.SetNewMapSizeY(size: int) -> None
WorldEditor.GetTerrainNum(x: float, y: float) -> int
WorldEditor.GetEditTerrainNum() -> int

Shadow Functions
----------------
WorldEditor.UpdateTerrainShadowMap() -> None
WorldEditor.ReloadTerrainShadowTexture() -> None
WorldEditor.DestroyShadowTexture() -> None
WorldEditor.RecreateShadowTexture() -> None

Minimap Functions
-----------------
WorldEditor.SaveMiniMap() -> None
WorldEditor.SaveAtlas() -> None

Monster Area Functions
----------------------
WorldEditor.ShowAllMonsterAreaInfo(enabled: int) -> None
WorldEditor.IsShowAllMonsterAreaInfo() -> int
WorldEditor.SaveMonsterAreaInfo() -> int
WorldEditor.GetMonsterAreaInfoCount() -> int
WorldEditor.GetSelectedMonsterAreaInfo() -> int
WorldEditor.SelectNextMonsterAreaInfo(forward: int = 1) -> None
WorldEditor.SelectMonsterAreaInfoStart() -> None
WorldEditor.SelectMonsterAreaInfoEnd() -> None
WorldEditor.IsSelectMonsterAreaInfoStarted() -> int
WorldEditor.AddNewMonsterAreaInfo(originX: int, originY: int, sizeX: int, sizeY: int, type: int, vid: int, count: int, dir: int) -> int
WorldEditor.RemoveMonsterAreaInfoPtr(index: int) -> int
WorldEditor.SetMonsterNames() -> None

Cursor Functions
----------------
WorldEditor.SetEditingCursorPosition(x: float, y: float, z: float) -> None
WorldEditor.GetEditingCursorPosition() -> (float, float, float)
WorldEditor.GetPickingCoordinate() -> (float, float, float, int, int, int, int, int, int) or tuple
WorldEditor.GetPickingCoordinateWithRay(rayOriginX: float, rayOriginY: float, rayOriginZ: float, rayDirX: float, rayDirY: float, rayDirZ: float) -> (float, float, float, int, int, int, int, int, int) or tuple

Auto-Save Functions
-------------------
WorldEditor.SetAutoSave(enabled: int) -> None
WorldEditor.IsAutoSave() -> int
WorldEditor.SetAutoBackup(enabled: int) -> None
WorldEditor.IsAutoBackup() -> int
WorldEditor.GetTimeSave() -> int
WorldEditor.SetNextTimeSave() -> None

Portal Functions
----------------
WorldEditor.EnablePortal(enabled: int) -> None
WorldEditor.IsSelected() -> int

Object Ambience Functions
-------------------------
WorldEditor.AddSelectedAmbienceScale(addScale: int) -> None
WorldEditor.AddSelectedAmbienceMaxVolumeAreaPercentage(percentage: float) -> None

Environment Script Functions
-----------------------------
WorldEditor.LoadEnvironmentScript(filename: str) -> None
WorldEditor.SaveEnvironmentScript(filename: str) -> None
WorldEditor.InitializeEnvironmentData() -> None
WorldEditor.RefreshScreenFilter() -> None
WorldEditor.RefreshSkyBox() -> None
WorldEditor.RefreshLensFlare() -> None

Skybox Functions
----------------
WorldEditor.SetSkyBoxTextureRenderMode(enabled: int) -> None
WorldEditor.IsSkyBoxTextureRenderMode() -> int
WorldEditor.SetSkyBoxFaceTexture(filename: str, faceIndex: int) -> None
WorldEditor.GetSkyBoxFaceTexture(faceIndex: int) -> str
WorldEditor.GetSkyBoxScale() -> (float, float, float)
WorldEditor.SetSkyBoxScale(x: float, y: float, z: float) -> None
WorldEditor.GetSkyBoxCloudScale() -> (float, float)
WorldEditor.SetSkyBoxCloudScale(x: float, y: float) -> None
WorldEditor.GetSkyBoxCloudTextureScale() -> (float, float)
WorldEditor.SetSkyBoxCloudTextureScale(x: float, y: float) -> None
WorldEditor.GetSkyBoxCloudSpeed() -> (float, float)
WorldEditor.SetSkyBoxCloudSpeed(x: float, y: float) -> None
WorldEditor.GetSkyBoxCloudHeight() -> float
WorldEditor.SetSkyBoxCloudHeight(height: float) -> None
WorldEditor.GetSkyBoxCloudTextureFileName() -> str
WorldEditor.SetSkyBoxCloudTextureFileName(filename: str) -> None
WorldEditor.GetSkyBoxGradientUpper() -> int
WorldEditor.SetSkyBoxGradientUpper(value: int) -> None
WorldEditor.GetSkyBoxGradientLower() -> int
WorldEditor.SetSkyBoxGradientLower(value: int) -> None
WorldEditor.InsertGradientUpper() -> None
WorldEditor.InsertGradientLower() -> None
WorldEditor.DeleteGradient(index: int) -> None

Lensflare Functions
-------------------
WorldEditor.GetLensFlareEnable() -> int
WorldEditor.SetLensFlareEnable(enabled: int) -> None
WorldEditor.GetLensFlareBrightnessColor() -> (float, float, float, float)
WorldEditor.SetLensFlareBrightnessColor(r: float, g: float, b: float, a: float) -> None
WorldEditor.GetLensFlareMaxBrightness() -> float
WorldEditor.SetLensFlareMaxBrightness(brightness: float) -> None
WorldEditor.GetMainFlareEnable() -> int
WorldEditor.SetMainFlareEnable(enabled: int) -> None
WorldEditor.GetMainFlareTextureFileName() -> str
WorldEditor.SetMainFlareTextureFileName(filename: str) -> None
WorldEditor.GetMainFlareSize() -> float
WorldEditor.SetMainFlareSize(size: float) -> None

Additional Utility Functions
-----------------------------
WorldEditor.GetMapID() -> int
WorldEditor.SetMapID(id: int) -> None

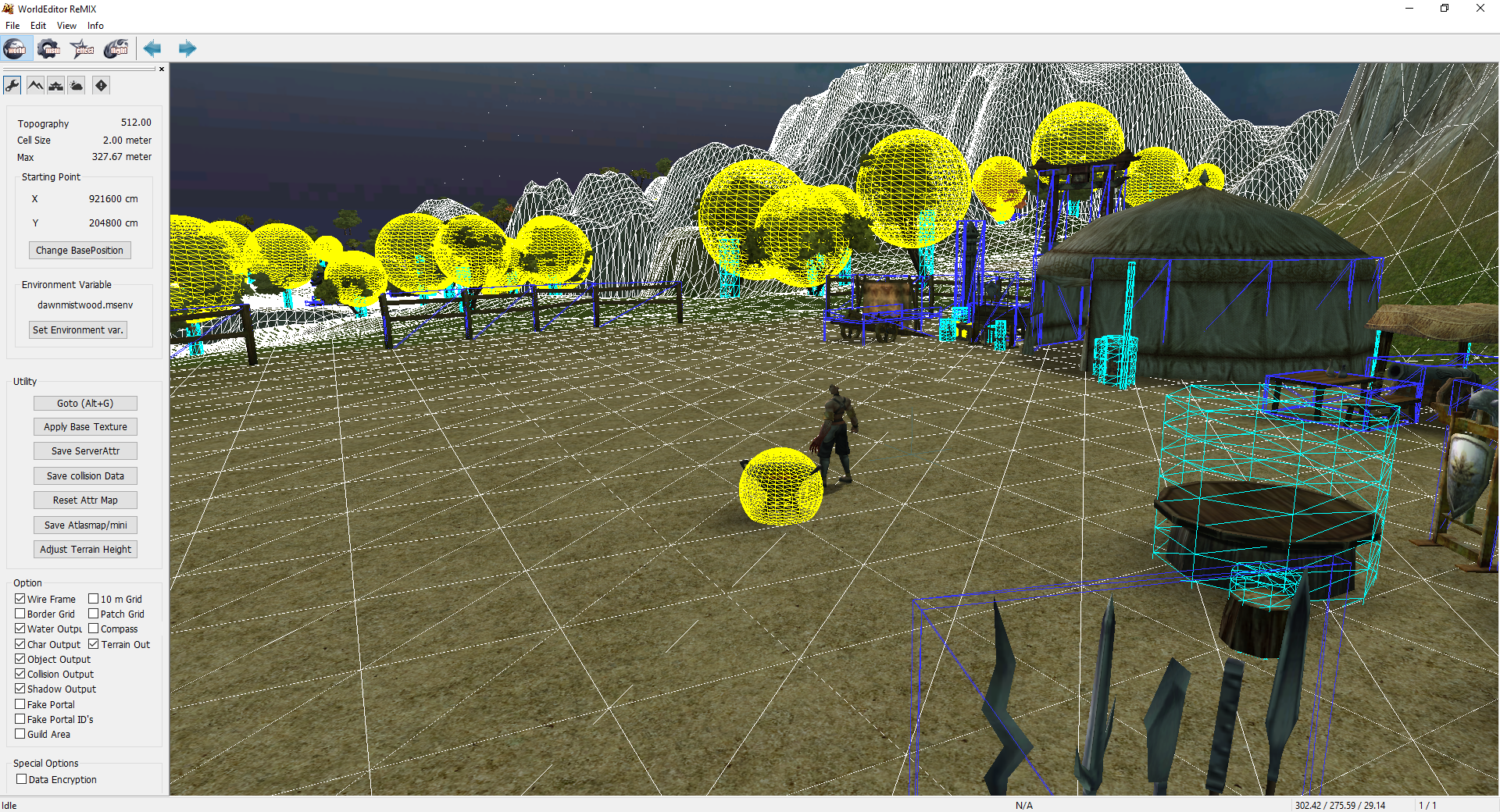

WorldEditor.ToggleWireframe() -> None
WorldEditor.RenderSelectedObject() -> None
WorldEditor.RenderAttr() -> None
WorldEditor.RenderObjectCollision() -> None
WorldEditor.UpdateEditing() -> None
WorldEditor.PreloadAllTerrainsAndAreas() -> int
WorldEditor.UpdateMapInfo() -> None
WorldEditor.UpdateBaseMapInfo(baseX: int, baseY: int) -> int
WorldEditor.CloseMap() -> None
WorldEditor.GetEditTerrain() -> int
WorldEditor.SetTerrainModified() -> None
WorldEditor.GetLastPickedAreaIndex() -> int
WorldEditor.SetLastPickedAreaIndex(index: int) -> None
WorldEditor.IsIntersectingSelection(index: int) -> int
WorldEditor.GetNumWater() -> int
WorldEditor.SetNumWater(num: int) -> None
WorldEditor.GetWaterHeightArray() -> list
WorldEditor.SetWaterHeightArray(waterList: list) -> None
WorldEditor.GetSplatValue() -> float
WorldEditor.SetSplatValue(value: float) -> None
WorldEditor.PreloadTerrainAndArea(terrainCoordX: int, terrainCoordY: int) -> None
WorldEditor.ArrangeTerrainHeight() -> None
WorldEditor.GetTerrainNumFromCoord(terrainNumX: int, terrainNumY: int) -> int
WorldEditor.RAW_ResetTextures() -> None
WorldEditor.GetTerrainTextureFilename(texIndex: int) -> str
WorldEditor.GetTerrainUsedTextures(terrainNumX: int, terrainNumY: int) -> list
WorldEditor.GetTerrainWorldBounds(terrainNumX: int, terrainNumY: int) -> (int, int, int, int)
WorldEditor.GetTileValueAt(x: float, y: float) -> int
WorldEditor.SetAttrAtWorld(x: float, y: float, attrFlag: int) -> None
WorldEditor.ApplyAttrToTerrainByTile(terrainNumX: int, terrainNumY: int, textureIds: list, attrFlag: int) -> int
WorldEditor.RefreshAllTerrainAttrs() -> int
WorldEditor.CleanupWaterWithoutAttr() -> (int, int, int, int, int, int, int)
WorldEditor.GetLastSelectedObjectData() -> dict
WorldEditor.AccumulateSelectionPivot() -> (float, float, float)
WorldEditor.CollectPortalNumber() -> list
WorldEditor.ClearSelectedPortalNumber() -> None
WorldEditor.SetSelectedObjectName(name: str) -> None
WorldEditor.CopySelectedObjectsToClipboard() -> None
WorldEditor.PasteObjectsFromClipboard(x: float, y: float, z: float) -> None
WorldEditor.GetSelectedObjectPortalVectorRef() -> list
WorldEditor.RenderAccessorTerrain(renderMode: int, attrFlag: int) -> None
WorldEditor.RenderToShadowMap() -> None
WorldEditor.RenderShadow() -> None
WorldEditor.RenderMiniMap() -> None
WorldEditor.SetTextureBrushVector(textureList: list) -> None
WorldEditor.SetInitTextureBrushVector(textureList: list) -> None
WorldEditor.ReloadTerrainTextures() -> None
WorldEditor.ReloadBuildingTexture() -> None


CONSTANTS
=========

Scene Type Constants
--------------------
WorldEditor.SCENE_MAP
WorldEditor.SCENE_OBJECT
WorldEditor.SCENE_EFFECT
WorldEditor.SCENE_FLY
WorldEditor.SCENE_MAX

Map Type Constants
------------------
WorldEditor.MAPTYPE_INVALID
WorldEditor.MAPTYPE_INDOOR
WorldEditor.MAPTYPE_OUTDOOR

Property Type Constants
-----------------------
WorldEditor.PROPERTY_TYPE_NONE
WorldEditor.PROPERTY_TYPE_TREE
WorldEditor.PROPERTY_TYPE_BUILDING
WorldEditor.PROPERTY_TYPE_EFFECT
WorldEditor.PROPERTY_TYPE_AMBIENCE
WorldEditor.PROPERTY_TYPE_DUNGEON_BLOCK
WorldEditor.PROPERTY_TYPE_MAX_NUM

Terrain Constants
-----------------
WorldEditor.TERRAIN_SIZE
WorldEditor.TERRAIN_PATCHSIZE
WorldEditor.TERRAIN_PATCHCOUNT
WorldEditor.MAXTERRAINTEXTURES
WorldEditor.MAPBASE

Brush Shape Constants
---------------------
WorldEditor.BRUSH_SHAPE_NONE
WorldEditor.BRUSH_SHAPE_CIRCLE
WorldEditor.BRUSH_SHAPE_SQUARE
WorldEditor.BRUSH_SHAPE_MAX

Brush Type Constants
--------------------
WorldEditor.BRUSH_TYPE_NONE
WorldEditor.BRUSH_TYPE_UP
WorldEditor.BRUSH_TYPE_DOWN
WorldEditor.BRUSH_TYPE_PLATEAU
WorldEditor.BRUSH_TYPE_NOISE
WorldEditor.BRUSH_TYPE_SMOOTH
WorldEditor.BRUSH_TYPE_MAX

Boundary Load Constants
---------------------
WorldEditor.BOUNDARY_LOAD_INVALID
WorldEditor.BOUNDARY_LOAD_NOBOUNDARY
WorldEditor.BOUNDARY_LOAD_TOPLEFT
WorldEditor.BOUNDARY_LOAD_TOP
WorldEditor.BOUNDARY_LOAD_TOPRIGHT
WorldEditor.BOUNDARY_LOAD_LEFT
WorldEditor.BOUNDARY_LOAD_RIGHT
WorldEditor.BOUNDARY_LOAD_BOTTOMLEFT
WorldEditor.BOUNDARY_LOAD_BOTTOM
WorldEditor.BOUNDARY_LOAD_BOTTOMRIGHT
WorldEditor.BOUNDARY_LOAD_ALLBOUNDARY

Monster Area Type Constants
----------------------------
WorldEditor.MONSTERAREAINFOTYPE_INVALID
WorldEditor.MONSTERAREAINFOTYPE_MONSTER
WorldEditor.MONSTERAREAINFOTYPE_GROUP

Monster Direction Constants
----------------------------
WorldEditor.MONSTER_DIR_RANDOM
WorldEditor.MONSTER_DIR_NORTH
WorldEditor.MONSTER_DIR_NORTHEAST
WorldEditor.MONSTER_DIR_EAST
WorldEditor.MONSTER_DIR_SOUTHEAST
WorldEditor.MONSTER_DIR_SOUTH
WorldEditor.MONSTER_DIR_SOUTHWEST
WorldEditor.MONSTER_DIR_WEST
WorldEditor.MONSTER_DIR_NORTHWEST

Additional Constants
--------------------
WorldEditor.AROUND_AREA_NUM
WorldEditor.MAX_WATER_NUM
WorldEditor.ENV_DIRLIGHT_BACKGROUND
WorldEditor.TILEMAP_RAW_XSIZE
WorldEditor.TILEMAP_RAW_YSIZE
WorldEditor.ATTRMAP_XSIZE
WorldEditor.ATTRMAP_YSIZE
WorldEditor.CELLSCALE_IN_METER
WorldEditor.HALF_CELLSCALE_IN_METER
WorldEditor.ATTRIBUTE_BLOCK
WorldEditor.ATTRIBUTE_WATER
WorldEditor.ATTRIBUTE_BANPK

Hello, Can someone explain me how grass and objects replacements works ? And where can I find that crc list?

! Important !

I think I found a bug, when I copy the selection and start working on the map , in some cases I use Undo option or sometimes when I do blocking or no pvp attr and press undo or redo the objects selected (sometimes random objects, not really copied) are going deep underneath the map and I have to reset the height many times and is quite bad when I have mde effects for example : lamps with mde because they are not fitting with the same heights.

One problem : trees rotation and tilting doesn't work in v49.

Second problem: Often I use more folders with ymir work, because I have some clean world editors for some custom maps, and I try to move them with the new v49 but takes off all the WorldEditorRemix_MfcRelease_v49.exe files and keeps the WorldEditorRemix_MfcRelease_v49.exe just in the biggest WE.

Edited February 19 by Metin2 Dev International
Core X - External 2 Internal

zMenyske · February 19

When if i save map with attr 4, ingame my grass dont pop, i use this function

		enum
		{
			ATTRIBUTE_BLOCK = (1 << 0),
			ATTRIBUTE_WATER = (1 << 1),
			ATTRIBUTE_BANPK = (1 << 2),
			ATTRIBUTE_GRASS = (1 << 4),
		};


bool CInstanceBase::__Background_IsGrassPixelPosition(const TPixelPosition& c_rkPPos)
{
	return CPythonBackground::Instance().isAttrOn(c_rkPPos.x, c_rkPPos.y, CTerrainImpl::ATTRIBUTE_GRASS);
}

zMenyske · February 20

16 hours ago, zMenyske said:

When if i save map with attr 4, ingame my grass dont pop, i use this function

		enum
		{
			ATTRIBUTE_BLOCK = (1 << 0),
			ATTRIBUTE_WATER = (1 << 1),
			ATTRIBUTE_BANPK = (1 << 2),
			ATTRIBUTE_GRASS = (1 << 4),
		};


bool CInstanceBase::__Background_IsGrassPixelPosition(const TPixelPosition& c_rkPPos)
{
	return CPythonBackground::Instance().isAttrOn(c_rkPPos.x, c_rkPPos.y, CTerrainImpl::ATTRIBUTE_GRASS);
}

ediit, not bug, just my map

This is the hidden content, please

martysama0134 · February 24

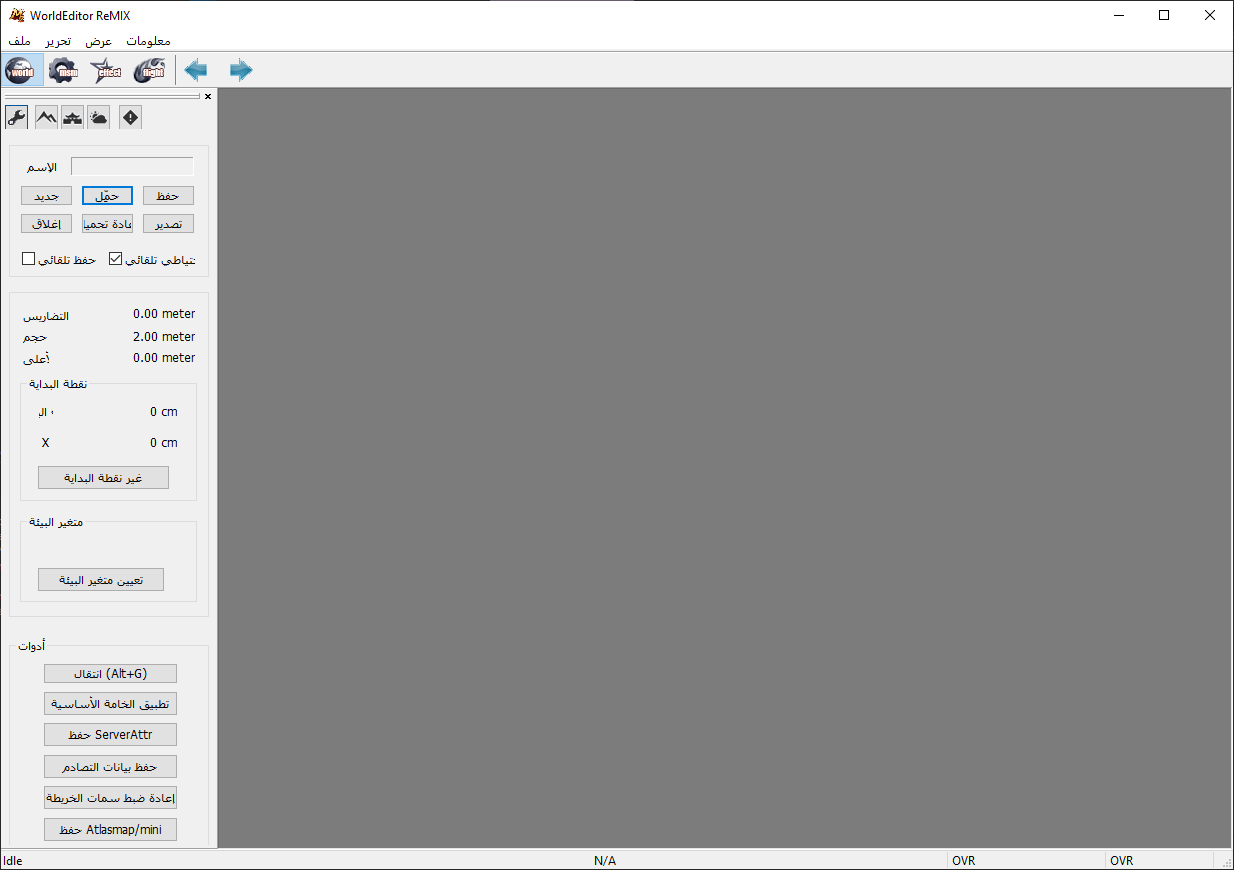

Updated IT / DE / FR / AE / TR translations for the v49.

Same repo as ever for the TL:

This is the hidden content, please

e.g. AE arabic:

; the default value "EN" won't load any .dll and will use the internal binary resources
; future versions of the program could make the previous generated .dll files useless
LOCALE = "AE"

Tengrist · February 25

Marty can u change the shadow logic, it will be so appealing when the shadow looks like something similar to object/tree etc. For now I see only pixels like official..

martysama0134 · March 2

I'm sorting out some urls for the WorldEditorRemix on GitHub. Added Website + Docs under a new Org. The Releases page is just a mirror just in case. Roadmap+Issues still blank here.

Website
This is the hidden content, please
- Sign In
- or
- Sign Up
This is the hidden content, please
- Sign In
- or
- Sign Up
This is the hidden content, please
- Sign In
- or
- Sign Up
This is the hidden content, please
- Sign In
- or
- Sign Up

KolenMG · March 15

Hello! A suggestion if its possible and when / if a newer version of WE will be released:

Can't we manually adjust the height / rotation, ambience and scale? like to be able to input values manually.
for example, once you modify the height of an object, if you try to drag the height option scroll bar back to 0, you'll not be able to. the minimum / maximum value being -0.310 or 0.310.

https://metin2.download/video/S5m6LiSEMN75BdgGmJ63QFeVrJ7ngSvu/.mp4 - attached media for refference

Also, as a feedback, the last changes made on WE are huge and nice AF! Are so usefull and I like them!

Edited March 15 by Metin2 Dev International
Core X - External 2 Internal

martysama0134 · March 16

V50 out!

Migrated to DirectX 9Ex
Fixed crash when moving mouse over freed object attribute instance
Fixed crash in terrain texture preview when image data is null or has unexpected BPP
Fixed effects not rendering on Effect/Model tabs after loading a map
Fixed particle rendering skipping all remaining particles when one was out of frustum
Fixed object height bias lost during terrain undo/redo and terrain height editing

Edited March 16 by martysama0134

Tatsumaru · March 17

1 hour ago, martysama0134 said:

V50 out!

Migrated to DirectX 9Ex

Fixed crash when moving mouse over freed object attribute instance

Fixed crash in terrain texture preview when image data is null or has unexpected BPP

Fixed effects not rendering on Effect/Model tabs after loading a map

Fixed particle rendering skipping all remaining particles when one was out of frustum

Fixed object height bias lost during terrain undo/redo and terrain height editing

1. Could you widen the World, MSM, Effect, and Flight panels by 50 pixels?

2. In Perspective Adjust, there is a noticeable lack of an option to restore the default Field of View value.

Asterix · March 17

Hi everyone,

I’m trying to use WorldEditor Remix on a Windows VPS and I’m running into the following error:

CreateUtilData: Cannot create sphere primitive

Here’s some context about my environment:

OS: Windows Server 2025 Datacenter x64

Environment: VPS (no dedicated GPU, using virtualized graphics / default Microsoft drivers)

Access: Remote Desktop (RDP)

I’m wondering if the issue could be related to the lack of proper 3D hardware support, or possibly missing / limited DirectX or OpenGL features in a VPS environment.

Has anyone experienced something similar running WorldEditor in a virtualized setup?

Thanks in advance

martysama0134 · March 18

V51 Out!

New ENABLE_TREE_ROTATION option (default: false); prevents leaf billboard glitch when tree rotation is non-zero
MAI_IMAGE_WITHOUT_MONSTER_AREA_INFO now defaults to true; monster area info no longer rendered on MAI images by default
Fixed black shadowmap/minimap output after DX9Ex migration
Fixed shadowmap generation only capturing objects near the camera; now it renders all the loaded areas
Fixed trees and buildings missing from shadowmap when camera is too low

Edited March 18 by martysama0134

martysama0134 · March 18

V52 Out!

New EXPORT_MAI_ATLAS_AS_PNG option (default: true); atlas/MAI images exported as PNG instead of BMP
Terrain texture preview now loads from pack files when not on disk
Removed DevIL (OpenIL) dependency entirely; all image operations use D3DX
Fixed black minimap.dds and atlas output after DX9Ex migration
Fixed memory leak in attr map initialization

daisamaa · March 18

Hello,I have a suggestion for adding a new feature I’m not sure if it would work with WorldEditor or if it can even be added

It would be great if Marty could implement it We could create terrain and mountains much more easily and wouldn’t need to spend so much time on details

I really like this feature in Unreal Engine it allows me to create many maps without wasting a lot of time

I’m not very good at explaining, but the video will show the idea and the feature that designers might want in WE

martysama0134 · March 20

v53 out!

New PRELOAD_ALL_TERRAINS option (default: true); it preloads all the terrains at map load, and eliminates freezes when crossing adjacent areas (150ms → 1s)
SpeedTree leaf rendering moved to GPU-local memory for better performance
Improved MAI minimap tile save
Fixed memory leak in attr map initialization

martysama0134 · March 21

V54 out!

64bit version available (shipped in a separate _x64 zip)
Miles dependency removed (switched to header-only miniaudio)
Granny2 dll dependency removed (now statically linked)

martysama0134 · March 23

v55 out!

Fixed height brush accidentally moving objects underground

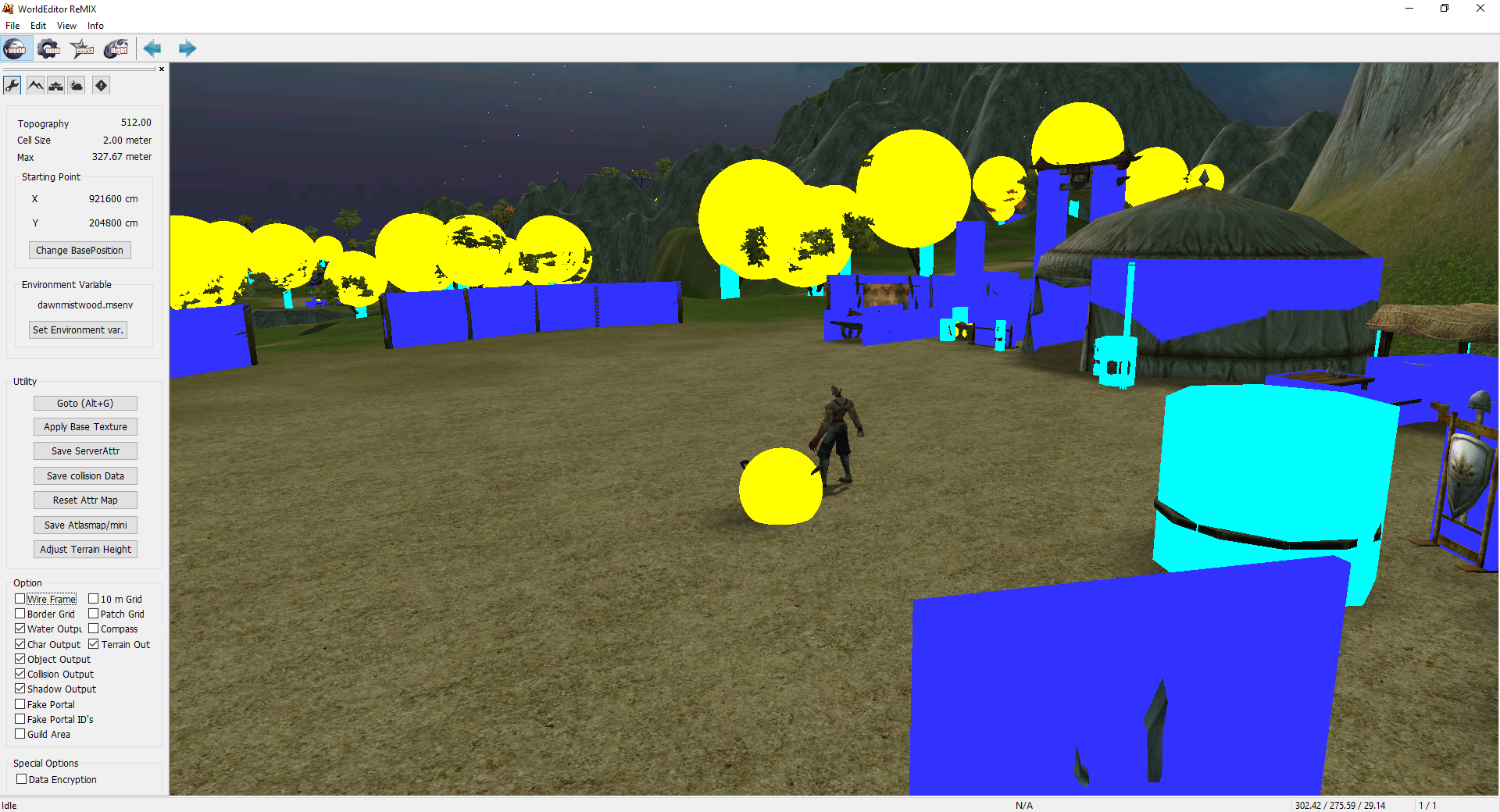

Improved debug collision rendering; color-coded types, solid by default, wireframe when toggled
Added GPU/process memory trimming on map close/reload
Fixed 32-bit index buffer limit; high-poly models (>65K vertices) no longer silently corrupt

Wireframe toggled off

Wireframe toggled on

Tengrist · March 24

Marty can u enhance the shadow logic, current one is like pixels can be drawn like exact object

KolenMG · March 24

8 hours ago, Tengrist said:

Marty can u enhance the shadow logic, current one is like pixels can be drawn like exact object

for what exactly?

There are too many clients made and most of them have the default shadow logic due to different reasons. You can t make the the WE specific for a client. What i want to say is it is useless to rewrite the shadow logic to be dynamic or such if the client where you are implementing the map created have the default shadow system.

Tengrist · March 25

23 hours ago, KolenMG said:

Tam olarak ne için?

Çok fazla istemci oluşturulmuş ve bunların çoğunda çeşitli nedenlerden dolayı varsayılan gölge mantığı bulunuyor. WE'yi istemciye özel hale getiremezsiniz. Demek istediğim, haritayı uyguladığınız istemci varsayılan gölge sistemine sahipse, gölge mantığını dinamik veya benzeri bir şekilde yeniden yazmanın hiçbir faydası yok.

I do not mean dynamic. Just HD statick shadow

Slyer1991 · March 25

28 minutes ago, Tengrist said:

I do not mean dynamic. Just HD statick shadow

Maybe source work could be done to have static map meshes considered to be movable (just like everything which receives dynamic shadows) and included in dynamic shadows. That would be a better 'fix' to have a consistent look overall. FPS cost in mind.

Edit: https://metin2.dev/topic/34033-c-dynamic-shadows-for-trees-objects-remove-static-shadowmap-logic/

Maybe Marty implements " DYN Sahdows " for the World Editor.

Edited March 25 by Slyer1991

Tatsumaru · March 25

6 hours ago, Tengrist said:

I do not mean dynamic. Just HD statick shadow

In Martysama archive, you will find versions of the program that generate higher-quality shadows.

martysama0134 · March 28

V56 out!

Added color-coded attr overlay: block=red, water=blue, banpk=green; overlapping attrs blend additively
Added new config option ENABLE_MAP_ATTR_COLORED (default: true): color-coded attr overlay; set to false for legacy white
Added we.DrawHeightBrush optional refreshObjectHeight parameter for Python scripts
Fixed stale collision visuals persisting after loading a new map
Fixed attr overlay not refreshing when moving across cells
Fixed crash on high-poly models with 32-bit indices (x64 heap overflow)
Fixed minimap.dds missing from Export Map
Improved 32-bit index detection using GrannyGetMeshBytesPerIndex

Edited March 28 by martysama0134

Sign In

WorldEditor ReMIX

Recommended Posts

martysama0134 10823

Link to comment

Share on other sites

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

martysama0134

3DModeller

martysama0134

habibithearabcat 0

Link to comment

Share on other sites

KolenMG 1138

Link to comment

Share on other sites

Horus 507

Link to comment

Share on other sites

zMenyske 6

Link to comment

Share on other sites

zMenyske 6

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

Tengrist 2

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

KolenMG 1138

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

Tatsumaru 7371

Link to comment

Share on other sites

Asterix 4

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

daisamaa 44

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

martysama0134 10823

Link to comment

Share on other sites

Tengrist 2

Link to comment

Share on other sites

KolenMG 1138

Link to comment

Share on other sites

Tengrist 2

Link to comment

Share on other sites

Slyer1991 0

Link to comment

Share on other sites
