Round Trip Time (RTT) Ping Statistics

[Owsap 7791]

M2 Download Center

This is the hidden content, please

• Sign In
• or
• Sign Up

  ( GitHub )

This is the hidden content, please

• Sign In
• or
• Sign Up

  ( MEGA )

This is the hidden content, please

• Sign In
• or
• Sign Up

  ( Internal )

Hey M2Dev, here is a little statistics overview of the Round Trip Time (RTT) Ping and Packet Loss.

Usefully for some, useless for others, so I decided to share it.

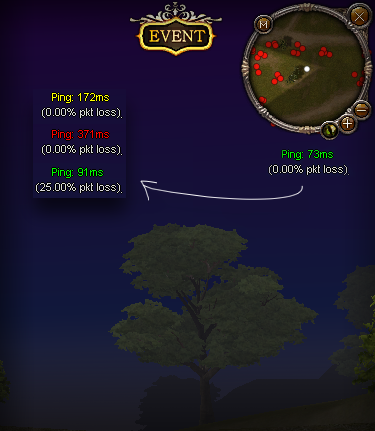

Preview

The image is an example...
The results where not captured accurately because they kept updating while I tried to take screenshots.
You will not get any PING on localhost.



If you find any problems let me know.

Edited July 24, 2021 by Owsap
Links & Repository Updated.

[UdvAtt108 92]

There is a nice memory leak, that spammed in every 5 seconds and makes high memory usage few hours later...

Please, be carefull when you use memory allocations...

Easy to fix it, lets correct it.

[luqurote 0]

1 hour ago, UdvAtt108 said:

There is a nice memory leak, that spammed in every 5 seconds and makes high memory usage few hours later...

Please, be carefull when you use memory allocations...

Easy to fix it, lets correct it.

please share fix

[UdvAtt108 92]

41 minutes ago, luqurote said:

please share fix

In ServerStateChecker.cpp file, end of CServerStateChecker::GetEchoReply function:

 Replace the following:

return;

with it:

free(ReplyBuffer);



Edit:

Or you can use fixed static variable as buffer, that is should be better in this case.

Edited July 24, 2021 by UdvAtt108

[Jimmermania 24]

I have this sysser:

0724 13:48:16827 :: UISCRIPT_LOAD_ERROR: can only concatenate tuple (not "list") to tuple [filename UIScript/MiniMap.py]
0724 13:48:16829 ::
uiMiniMap.py(line:341) __LoadWindow
ui.py(line:3740) GetChild

MiniMap.LoadWindow.Bind - <type 'exceptions.KeyError'>:'RTTTextLine'



[Owsap 7791]

12 hours ago, UdvAtt108 said:

There is a nice memory leak, that spammed in every 5 seconds and makes high memory usage few hours later...

Please, be carefull when you use memory allocations...

Easy to fix it, lets correct it.

Glad someone had to point that out, obviously, every allocation must be freed after using it but I wasn’t sure if IcmpSendEcho2 function cleared it for me, but honestly, I forgot about it.
Since you had good eyes in pointing that out, you also forgot to mention to close the IcmpFile HANDLE.

7 hours ago, Jimmermania said:

I have this sysser:

0724 13:48:16827 :: UISCRIPT_LOAD_ERROR: can only concatenate tuple (not "list") to tuple [filename UIScript/MiniMap.py]
0724 13:48:16829 ::
uiMiniMap.py(line:341) __LoadWindow
ui.py(line:3740) GetChild

MiniMap.LoadWindow.Bind - <type 'exceptions.KeyError'>:'RTTTextLine'



The file in the tutorial "UIScript/MiniMap.py" already contains the correct structure to attach more children in the window. If you didn't use the file you can do this (2 options);

Spoiler

''' 1. @ UIScript/MiniMap.py '''
# Search all
	"children" :
	(
		...
	),

# Replace with
	"children" :
	[
		...
	],



Or you can just add;

Spoiler

''' 1. @ UIScript/MiniMap.py '''
# Search
				## ServerInfo
				{
					"name" : "ServerInfo",
					"type" : "text",

					"text_horizontal_align" : "center",

					"outline" : 1,

					"x" : 70,
					"y" : 140,

					"text" : "",
				},

# Add below
				## RTT Statistics
				{
					"name" : "RTTTextLine",
					"type" : "text",

					"x" : 0,
					"y" : 160,

					"horizontal_align" : "center",
					"text_horizontal_align" : "center",

					"text" : "",
					"outline" : 1,
				},
				{
					"name" : "PacketLossTextLine",
					"type" : "text",

					"x" : 0,
					"y" : 160 + 15,

					"horizontal_align" : "center",
					"text_horizontal_align" : "center",

					"text" : "",
					"outline" : 1,
				},



Links & Repository Updated.

Edited July 24, 2021 by Owsap

[sociopat32 2]

I'm getting this thing ....

Does anyone have an idea?

Edited August 18, 2022 by Metin2 Dev
Core X - External 2 Internal

[Karbust 4737]

First of all, thank you for this release.

Since I use a hostname instead of an IP, this didn't work for me, this are the changes I made to make it work (also works with IP).

	CAccountConnector& rkAccountConnector = CAccountConnector::Instance();

	struct hostent* remoteHost;

	if ((remoteHost = gethostbyname(rkAccountConnector.GetServerAddr())) == NULL) {
#if defined(_DEBUG_RTT)
		TraceError("Unknown Hostname.\n\n");
#endif
		return; // Unkown Hostname
	}

	char* pDmsIP = inet_ntoa(*(struct in_addr*)(remoteHost->h_addr_list[0]));
	ipaddr = inet_addr(pDmsIP);



Edited September 11, 2021 by Karbust

[Owsap 7791]

28 minutes ago, Karbust said:

First of all, thank you for this release.

Since I use a hostname instead of an IP, this didn't work for me, this are the changes I made to make it work (also works with IP).

	CAccountConnector& rkAccountConnector = CAccountConnector::Instance();

	struct hostent* remoteHost;

	if ((remoteHost = gethostbyname(rkAccountConnector.GetServerAddr())) == NULL) {
#if defined(_DEBUG_RTT)
		TraceError("Unknown Hostname.\n\n");
#endif
		return; // Unkown Hostname
	}

	char* pDmsIP = inet_ntoa(*(struct in_addr*)(remoteHost->h_addr_list[0]));
	ipaddr = inet_addr(pDmsIP);



Thanks for contributing, I will update the repository soon.

[sociopat32 2]

On 8/17/2021 at 1:23 PM, sociopat32 said:

I'm getting this thing ....

Does anyone have an idea?

Up!

Edited August 17, 2022 by Metin2 Dev
Core X - External 2 Internal

[Kafa 148]

On 9/11/2021 at 10:54 PM, sociopat32 said:

Up!



I'm having the same issue on my windowsfiles. Also there is a screen freeze every 4th second.

@ Owsap

[Karbust 4737]

Since not everyone has a good internet and there are instances when someone can have high ping, I think it shouldn't affect the game play capability in such cases, so I just added the ping code to a thread and now it doesn't block the game.

This is the hidden content, please

• Sign In
• or
• Sign Up





Edited July 20, 2022 by Karbust

[Jimmermania 24]

I got this error: BUG

Any ideas?

Edited September 4, 2022 by Metin2 Dev
Core X - External 2 Internal

[davecosmo 9]

On 9/11/2021 at 7:46 PM, Karbust said:

First of all, thank you for this release.

Since I use a hostname instead of an IP, this didn't work for me, this are the changes I made to make it work (also works with IP).

	CAccountConnector& rkAccountConnector = CAccountConnector::Instance();

	struct hostent* remoteHost;

	if ((remoteHost = gethostbyname(rkAccountConnector.GetServerAddr())) == NULL) {
#if defined(_DEBUG_RTT)
		TraceError("Unknown Hostname.\n\n");
#endif
		return; // Unkown Hostname
	}

	char* pDmsIP = inet_ntoa(*(struct in_addr*)(remoteHost->h_addr_list[0]));
	ipaddr = inet_addr(pDmsIP);



Hi all, since my good friend @ Karbust forgot to mention (this mod work well btw and ty both), I've come to let you my small contribution, explaining how to implement.

His mod is done like this:

After implemented the full mod as @ Owsap explain, open the file
Client source -> in file ServerStateChecker.cpp

Search for:

ipaddr = inet_addr(strcmp(rkAccountConnector.GetServerAddr(), "localhost") == 0 ? "127.0.0.1" : rkAccountConnector.GetServerAddr());



and replace that* line (just that one) with all these given by @ Karbust :

	struct hostent* remoteHost;
	if ((remoteHost = gethostbyname(rkAccountConnector.GetServerAddr())) == NULL) {
#if defined(_DEBUG_RTT)
		TraceError("Unknown Hostname.\n\n");
#endif
		return; // Unkown Hostname
	}
	char* pDmsIP = inet_ntoa(*(struct in_addr*)(remoteHost->h_addr_list[0]));
	ipaddr = inet_addr(pDmsIP);

Work just fine for me.

EDIT: @Jimmermania you must have missed a step somewhere, verify again, or rollback to a previous backup and restart again.

Edited October 15, 2022 by davecosmo

[Debloat 85]

Thank you, it works.

Edited May 16, 2023 by Debloat

[DemOnJR 523]

Tested and is working.
If you get the error with thread on compilation just add std::thread like in this example:

#if defined(ENABLE_PERFORMANCE_STATISTICS)
	static DWORD s_dwCheckPingTime = ELTimer_GetMSec();

	if (ELTimer_GetMSec() - s_dwCheckPingTime > CServerStateChecker::MAX_RTT_REQUEST_MS)
	{
		std::thread t(NonBlockingServerStateChecker, &m_kServerStateChecker, &m_dwRTT, &m_fPktLossPct, &s_dwCheckPingTime);
		t.detach();
	}
#endif

Also if the ms is 999ms you need to allow IMCP traffic on your FIREWALL.

And done.

[ZentraX 4]

4 hours ago, DemOnJR said:

Tested and is working.
If you get the error with thread on compilation just add std::thread like in this example:

#if defined(ENABLE_PERFORMANCE_STATISTICS)
	static DWORD s_dwCheckPingTime = ELTimer_GetMSec();

	if (ELTimer_GetMSec() - s_dwCheckPingTime > CServerStateChecker::MAX_RTT_REQUEST_MS)
	{
		std::thread t(NonBlockingServerStateChecker, &m_kServerStateChecker, &m_dwRTT, &m_fPktLossPct, &s_dwCheckPingTime);
		t.detach();
	}
#endif

Also if the ms is 999ms you need to allow IMCP traffic on your FIREWALL.

And done.

How about adding an task with std::async? I would prefer it with a promise like this:

private:
  std::future<int32_t> m_pingTask{};
  int32_t m_ping{};
public:
  // easy running in background :_D
  void Ping()
  {
    // Task is already running
    if (m_pingTask.valid()) return;

    m_pingTask = std::async(std::launch::async, []() { /*... Perform ping request here */ return ping;});
  }

  void UpdatePing()
  {
    if (m_pingTask.valid())
    {
      const auto status = m_pingTask.wait_until(std::chrono::system_clock::now() + std::chrono::seconds(0)); // 0 not timeout if the task is done here
      if (status == std::future_status::ready) // ready means the task is done
      {
          m_ping = m_pingTask.get(); // here you can get the like use python create a func for it like app.GetPing() and return this value here
          m_pingTask = {};
      }
    }
  }

   int32_t GetPing() const
   {
		return m_ping;
   }



Edited August 16, 2023 by ZentraX

[DemOnJR 523]

Spoiler

16 minutes ago, ZentraX said:

How about adding an task with std::async? I would prefer it with a promise like this:

private:
  std::future<int32_t> m_pingTask{};
  int32_t m_ping{};
public:
  // easy running in background :_D
  void Ping()
  {
    // Task is already running
    if (m_pingTask.valid()) return;

    m_pingTask = std::async(std::launch::async, []() { /*... Perform ping request here */ return ping;});
  }

  void UpdatePing()
  {
    if (m_pingTask.valid())
    {
      const auto status = m_pingTask.wait_until(std::chrono::system_clock::now() + std::chrono::seconds(0)); // 0 not timeout if the task is done here
      if (status == std::future_status::ready) // ready means the task is done
      {
          m_ping = m_pingTask.get(); // here you can get the like use python create a func for it like app.GetPing() and return this value here
          m_pingTask = {};
      }
    }
  }

   int32_t GetPing() const
   {
		return m_ping;
   }





Idk you can try to use async also is your choice, i do not use boost so thread is ok.

[Lycawn 250]

    thread t(NonBlockingServerStateChecker, &m_kServerStateChecker, &m_dwRTT, &m_fPktLossPct, &s_dwCheckPingTime);
        t.detach();

for the fix while i am using older source need to clarify std::thread .

Edited December 27, 2023 by Lycawn

[Rodrigo152 4]

Can anyone help me with this syserr error

0117 20:31:09259 ::
networkModule.py(line:197) SetSelectCharacterPhase
system.py(line:177) __hybrid_import
system.py(line:142) _process_result
introSelect.py(line:28) <module>
system.py(line:177) __hybrid_import
system.py(line:142) _process_result
interfaceModule.py(line:27) <module>
system.py(line:177) __hybrid_import

networkModule.SetSelectCharacterPhase - <type 'exceptions.IndentationError'>:unindent does not match any outer indentation level (uiMiniMap.py, line 395)

0117 20:31:09259 :: ============================================================================================================
0117 20:31:09259 :: Abort!!!!

Edited January 18 by Metin2 Dev International
Core X - External 2 Internal

[TAUMP 802]

TABS

[Rodrigo152 4]

I did as you said, but it returned the following error:

Quote

0127 13:40:05685 ::
Ping statistics for 51.81.90.206:
0127 13:40:05685 ::     Packets: Sent = 1, Received = 1, Lost = 0 (0.00% loss),
0127 13:40:07239 ::
networkModule.py(line:197) SetSelectCharacterPhase
system.py(line:177) __hybrid_import
system.py(line:142) _process_result
introSelect.py(line:28) <module>
system.py(line:177) __hybrid_import
system.py(line:142) _process_result
interfaceModule.py(line:27) <module>
system.py(line:177) __hybrid_import

networkModule.SetSelectCharacterPhase - <type 'exceptions.SyntaxError'>:invalid syntax (uiMiniMap.py, line 340)

0127 13:40:07239 :: ============================================================================================================
0127 13:40:07239 :: Abort!!!!



Edited January 27 by Metin2 Dev International
Core X - External 2 Internal
