[C++] GF __LoadAtlasMarkInfo WhiteMark pixel shift fix

[Kaptan Yosun 859]

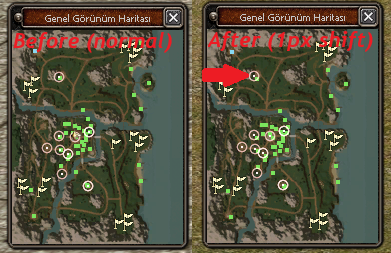

While working with the GF-based atlas mark system, I noticed a 1-pixel north-west offset on the 2×2 WhiteMark dots of NPCs that have an active quest on the minimap.
This offset was visible only on quest-marked NPCs; normal NPC dots looked correct at first glance.

Why Was This Not Noticed Before?
With the old atlas data and previous loading functions, atlas mark positions were processed using low-resolution / coarse coordinates, which effectively masked the issue in practice.
In the newer GF __LoadAtlasMarkInfo implementation, atlas coordinates are used more accurately and directly, which made this previously unnoticed alignment issue visible.

For example, this is an entry from the old
Server\Binary\share\locale\xx\map\metin2_map_c1\npc.txt,
where the coordinates are written roughly:

m    732    390    0    0    0    0    1m    100    1    9009

And this is the corresponding entry from the new
Client\Binary\pack\locale\locale\xx\map\metin2_map_c1_point.txt,
where the coordinates are written precisely (×100):

#index    x    y    npc_vnum    enable_helper    icon
0    73200    39000    9009    0    0

This higher-precision data likely exposed floating-point alignment differences.
In other words, this is not a bug introduced by the new function, but rather a previously existing logical issue that was hidden and has now surfaced.



Cause
During the atlas mark loading stage:

• Half of the sprite width/height was subtracted, applying early centering
• During rendering, the sprite was already assumed to be centered

This resulted in:

• Atlas mark positions being centered twice
• A visible 1-pixel north-west shift, especially in the quest highlight pixel inside the WhiteMark



Solution
The responsibility between logic layers was clearly separated:

• Atlas mark positions are now stored as center coordinates
• Sprite size–dependent half-width / half-height offsets are applied only during rendering

As a result:

• NPC dots
• Quest highlight pixels
• Waypoint and target markers

are all aligned using the same reference point.



Result

• The quest pixel offset on WhiteMark is completely fixed
• Atlas and minimap rendering logic is now more consistent
• Future refactors or visual changes are less likely to reintroduce similar issues



Client\Source\UserInterface\PythonMiniMap.cpp:

// Search @@ void CPythonMiniMap::__LoadAtlasMarkInfo()

        aAtlasMarkInfo.m_fScreenX = aAtlasMarkInfo.m_fX / m_fAtlasMaxX * m_fAtlasImageSizeX - (float)m_WhiteMark.GetWidth() / 2.0f;
        aAtlasMarkInfo.m_fScreenY = aAtlasMarkInfo.m_fY / m_fAtlasMaxY * m_fAtlasImageSizeY - (float)m_WhiteMark.GetHeight() / 2.0f;

// Change

        /* - ATLAS_MARK_INFO [REFACTOR] ------------------------
         * [KaptanYosun Dev Note]
         * Atlas mark positions must be stored as CENTER coordinates.
         *
         * The previous implementation subtracted half of the mark size
         * here, effectively converting the position to top-left space
         * too early. This caused double-centering during rendering and
         * resulted in a 1px north-west offset in quest-highlight pixels.
         *
         * Centering (subtracting half width/height) is now applied ONLY
         * at render time, ensuring consistent alignment between:
         *  - NPC dots
         *  - Quest highlight pixels
         *  - Waypoints and target marks
         *
         * Rule: store logical positions as center, apply sprite offsets
         * only in the rendering layer.
         */
        aAtlasMarkInfo.m_fScreenX = aAtlasMarkInfo.m_fX / m_fAtlasMaxX * m_fAtlasImageSizeX;
        aAtlasMarkInfo.m_fScreenY = aAtlasMarkInfo.m_fY / m_fAtlasMaxY * m_fAtlasImageSizeY;
        /* ----------------------------------------------------- */



// Search @@ void CPythonMiniMap::RenderAtlas(float fScreenX, float fScreenY)

    STATEMANAGER.SetRenderState(D3DRS_TEXTUREFACTOR, CInstanceBase::GetIndexedNameColor(CInstanceBase::NAMECOLOR_NPC));
    m_AtlasMarkInfoVectorIterator = m_AtlasNPCInfoVector.begin();

// Add below

    /* - ATLAS_MARK_INFO [REFACTOR] ------------------------ */
    const float halfWidth = static_cast<float>(m_WhiteMark.GetWidth()) * 0.5f;
    const float halfHeight = static_cast<float>(m_WhiteMark.GetHeight()) * 0.5f;
    /* ----------------------------------------------------- */



// Search (2x) @@ void CPythonMiniMap::RenderAtlas(float fScreenX, float fScreenY)

        m_WhiteMark.SetPosition(rAtlasMarkInfo.m_fScreenX, rAtlasMarkInfo.m_fScreenY);

// Change (2x)

        /* - ATLAS_MARK_INFO [REFACTOR] ------------------------ */
        m_WhiteMark.SetPosition(
            rAtlasMarkInfo.m_fScreenX - halfWidth,
            rAtlasMarkInfo.m_fScreenY - halfHeight
        );
        /* ----------------------------------------------------- */



This fix applies to all clients using the GF Atlas Mark system.

[ARiver 79]

Hello and thanks a lot it was driving me crazy, thinking i've done something wrong deleting the packet to send NPC pos !

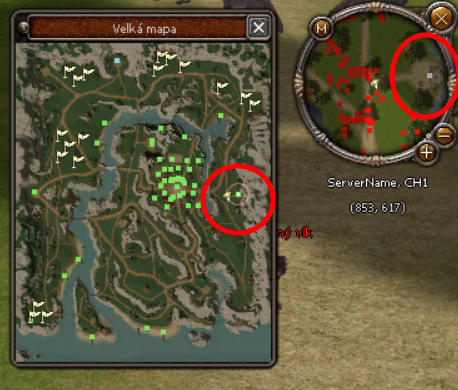

I still have a slight issue : it works fine on the big map as shown in your topic, but I still have an offset on the minimap , I've tried to solved it but couldn't !



Thanks again !



EDIT :
I've find something to correct the offset in the minimpa too but i don't know if it's good :


Spoiler

//in  void CPythonMiniMap::Update(float fCenterX, float fCenterY):

//Search for :
				rAtlasMarkInfo.m_fMiniMapX = ( m_fWidth - (float)m_WhiteMark.GetWidth() ) / 2.0f + fDistanceFromCenterX + m_fScreenX + 2.0f;
				rAtlasMarkInfo.m_fMiniMapY = ( m_fHeight - (float)m_WhiteMark.GetHeight() ) / 2.0f + fDistanceFromCenterY + m_fScreenY + 2.0f;

//replace with :
				rAtlasMarkInfo.m_fMiniMapX = m_fWidth / 2.0f + fDistanceFromCenterX + m_fScreenX + 2.0f;
				rAtlasMarkInfo.m_fMiniMapY = m_fHeight / 2.0f + fDistanceFromCenterY + m_fScreenY + 2.0f;


//Search for :
				rAtlasMarkInfo.m_fMiniMapX = ( m_fWidth - (float)m_WhiteMark.GetWidth() ) / 2.0f + fDistanceFromCenterX + m_fScreenX;
				rAtlasMarkInfo.m_fMiniMapY = ( m_fHeight - (float)m_WhiteMark.GetHeight() ) / 2.0f + fDistanceFromCenterY + m_fScreenY;

//replace with :
				rAtlasMarkInfo.m_fMiniMapX = m_fWidth / 2.0f + fDistanceFromCenterX + m_fScreenX;
				rAtlasMarkInfo.m_fMiniMapY = m_fHeight / 2.0f + fDistanceFromCenterY + m_fScreenY;





Edited February 16 by ARiver
Minimap offset fix ?

[kaysen 13]

You have inconsistencies there, because void CPythonMiniMap::RegisterAtlasMark must be too ->

	aAtlasMarkInfo.m_fScreenX = aAtlasMarkInfo.m_fX / m_fAtlasMaxX * m_fAtlasImageSizeX;
	aAtlasMarkInfo.m_fScreenY = aAtlasMarkInfo.m_fY / m_fAtlasMaxY * m_fAtlasImageSizeY;

+ as a bonus, the .sub has wrong position with marks, which is mostly the main problem with all of this..
