Last night I remembered the contribution that @ Tatsumaru made some time ago for the sliderbar and I really liked the design, I did not see that nobody adapted it correctly and I was motivated to make the necessary changes to make it work correctly, it is not a big deal, but I am sure that someone will be useful.



improvements made



the drag class button is not updating correctly, now it will refresh properly when hovering the cursor

added reset button positioning as shown in the design



if you see that it can be done in a better way, I am open to listen

forgot to add need the designs that @ Tatsumarupublished in this contribution




Edited March 23, 2025 by DeadOfLove
forget to add the design reference

[Filachilla 66]

Spoiler

class SliderBar(Window):

	def __init__(self):
		Window.__init__(self)

		self.curPos = 1.0
		self.pageSize = 1.0
		self.eventChange = None

		self.__CreateBackGroundImage()
		self.__CreateCursor()

		self.__CreateResetButton()

	def __del__(self):
		Window.__del__(self)

	def __CreateBackGroundImage(self):
		img = ImageBox()
		img.SetParent(self)
		img.LoadImage("d:/ymir work/ui/game/slidebar/slidebar.tga")
		img.Show()
		self.backGroundImage = img

		##
		self.SetSize(self.backGroundImage.GetWidth(), self.backGroundImage.GetHeight())

	def __CreateCursor(self):
		cursor = DragButton()
		cursor.AddFlag("movable")
		cursor.AddFlag("restrict_y")
		cursor.SetParent(self)
		cursor.SetMoveEvent(__mem_func__(self.__OnMove))
		cursor.SetUpVisual("d:/ymir work/ui/game/slidebar/slidebar_button01.tga")
		cursor.SetOverVisual("d:/ymir work/ui/game/slidebar/slidebar_button02.tga")
		cursor.SetDownVisual("d:/ymir work/ui/game/slidebar/slidebar_button01.tga")
		cursor.Show()
		self.cursor = cursor

		##
		self.startX = 7
		self.endX = 154

		self.cursor.SetRestrictMovementArea(self.startX, 0, self.endX, 0)
		self.pageSize = self.endX - self.startX - self.cursor.GetWidth()

	def __CreateResetButton(self):
		resetButton = Button()
		resetButton.SetParent(self)
		resetButton.SetPosition(170, 0)
		resetButton.SetUpVisual("d:/ymir work/ui/game/slidebar/reset01.tga")
		resetButton.SetOverVisual("d:/ymir work/ui/game/slidebar/reset02.tga")
		resetButton.SetDownVisual("d:/ymir work/ui/game/slidebar/reset03.tga")
		resetButton.SetEvent(__mem_func__(self.OnReset))
		resetButton.Show()
		self.resetButton = resetButton

	def OnReset(self, pos=0.0):
		self.SetSliderPos(pos)

		if self.eventChange:
			self.eventChange()

	def __OnMove(self):
		(xLocal, yLocal) = self.cursor.GetLocalPosition()
		self.curPos = float(xLocal - self.startX) / float(self.pageSize)

		if self.eventChange:
			self.eventChange()

	def SetSliderPos(self, pos):
		self.curPos = pos
		self.cursor.SetPosition(int(self.startX + self.pageSize * pos), 0)

	def GetSliderPos(self):
		return self.curPos

	def SetEvent(self, event):
		self.eventChange = event

	def Enable(self):
		self.cursor.Show()
		self.resetButton.Show()

	def Disable(self):
		self.cursor.Hide()
		self.resetButton.Hide()



This is the hidden content, please

• Sign In
• or
• Sign Up

Edited March 9 by Filachilla

[Filachilla 66]

On 3/9/2026 at 5:50 PM, Filachilla said:

  Reveal hidden contents

class SliderBar(Window):

	def __init__(self):
		Window.__init__(self)

		self.curPos = 1.0
		self.pageSize = 1.0
		self.eventChange = None

		self.__CreateBackGroundImage()
		self.__CreateCursor()

		self.__CreateResetButton()

	def __del__(self):
		Window.__del__(self)

	def __CreateBackGroundImage(self):
		img = ImageBox()
		img.SetParent(self)
		img.LoadImage("d:/ymir work/ui/game/slidebar/slidebar.tga")
		img.Show()
		self.backGroundImage = img

		##
		self.SetSize(self.backGroundImage.GetWidth(), self.backGroundImage.GetHeight())

	def __CreateCursor(self):
		cursor = DragButton()
		cursor.AddFlag("movable")
		cursor.AddFlag("restrict_y")
		cursor.SetParent(self)
		cursor.SetMoveEvent(__mem_func__(self.__OnMove))
		cursor.SetUpVisual("d:/ymir work/ui/game/slidebar/slidebar_button01.tga")
		cursor.SetOverVisual("d:/ymir work/ui/game/slidebar/slidebar_button02.tga")
		cursor.SetDownVisual("d:/ymir work/ui/game/slidebar/slidebar_button01.tga")
		cursor.Show()
		self.cursor = cursor

		##
		self.startX = 7
		self.endX = 154

		self.cursor.SetRestrictMovementArea(self.startX, 0, self.endX, 0)
		self.pageSize = self.endX - self.startX - self.cursor.GetWidth()

	def __CreateResetButton(self):
		resetButton = Button()
		resetButton.SetParent(self)
		resetButton.SetPosition(170, 0)
		resetButton.SetUpVisual("d:/ymir work/ui/game/slidebar/reset01.tga")
		resetButton.SetOverVisual("d:/ymir work/ui/game/slidebar/reset02.tga")
		resetButton.SetDownVisual("d:/ymir work/ui/game/slidebar/reset03.tga")
		resetButton.SetEvent(__mem_func__(self.OnReset))
		resetButton.Show()
		self.resetButton = resetButton

	def OnReset(self, pos=0.0):
		self.SetSliderPos(pos)

		if self.eventChange:
			self.eventChange()

	def __OnMove(self):
		(xLocal, yLocal) = self.cursor.GetLocalPosition()
		self.curPos = float(xLocal - self.startX) / float(self.pageSize)

		if self.eventChange:
			self.eventChange()

	def SetSliderPos(self, pos):
		self.curPos = pos
		self.cursor.SetPosition(int(self.startX + self.pageSize * pos), 0)

	def GetSliderPos(self):
		return self.curPos

	def SetEvent(self, event):
		self.eventChange = event

	def Enable(self):
		self.cursor.Show()
		self.resetButton.Show()

	def Disable(self):
		self.cursor.Hide()
		self.resetButton.Hide()



This is the hidden content, please

• Sign In
• or
• Sign Up

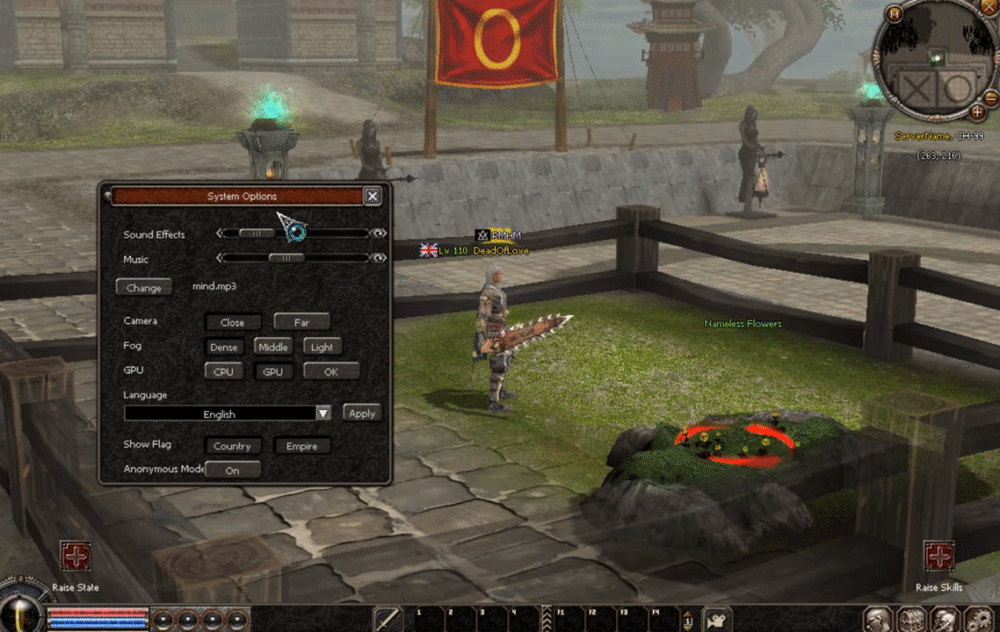

I can't edit my post, but by the way, I'm adding a screenshot as requested. I've added a min/max range + an edit interface to make it smooth.

preview
