exporting armor from fbx to gr2 breaks model

[Saitama 6]

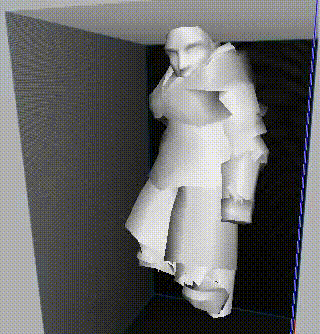

hello! im trying to export armor from fbx to gr2 but everytime i do this it doesnt work properly. this it what it looks in granny viewer (with color is original, white is my export):

https://metin2.download/picture/BZoYTHvY4B21tfcpV7EJvyK1zSV1Wlqo/.gif

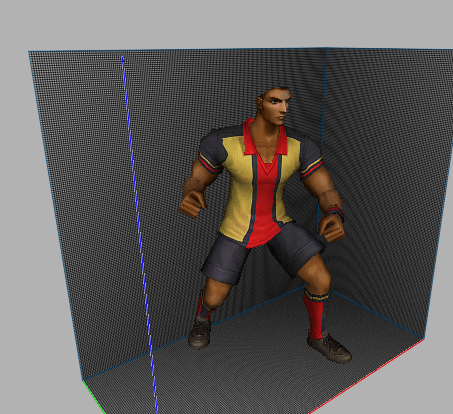

but this is what happens if i add animation:

https://metin2.download/picture/BeS6VkCIMq9XD2n85mOt1uQDcKahloBJ/.gif

i exported the granny to fbx with noesis script 1.3 with -rotate 90 0 0 as advanced parameter. then i exported armor with granny plugin with scale 100 in export settings

can someone help ?



Edited September 4, 2022 by Metin2 Dev
Core X - External 2 Internal

[FBI 43]

Looks ok for me.

[arlinamid 1076]

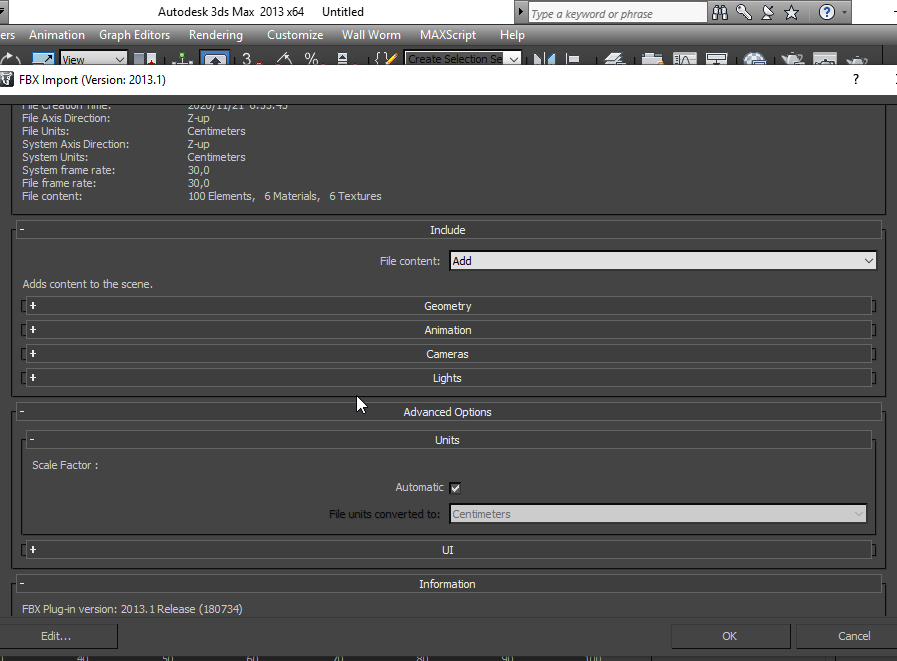

Hi, when you imported fbx to 3ds max take attention to conversion unit, because some model uses inch or your 3ds max  doesnt set  to centimeters. I attached 2 pics what setting I used.

In noesis you can use -fbxzup parameter.

Edited August 13, 2021 by arlinamid

[Saitama 6]

@arlinamidthis worked thank you very much i dont have problems with animations anymore

but now i have two new problems:

1: The sholder of the armor looks like this after noesis to 3ds max

2: weapon doesnt stick to hand in game, it is on 0 0 0 position

Edited August 18, 2022 by Metin2 Dev
Core X - External 2 Internal

[Alucard 232]

2 hours ago, Saitama said:

@arlinamidthis worked thank you very much i dont have problems with animations anymore

but now i have two new problems:

1: The sholder of the armor looks like this after noesis to 3ds max

2: weapon doesnt stick to hand in game, it is on 0 0 0 position

I got the same problem with Noesis and I think that the problem is about your 3DS max version, which version do you use ?

Edited August 18, 2022 by Metin2 Dev
Core X - External 2 Internal

[arlinamid 1076]

35 minutes ago, Alucard said:

I got the same problem with Noesis and I think that the problem is about your 3DS max version, which version do you use ?

I dont think so, i use 3 different version of 3ds max. I didnt have these problems. Check the latest version noesis and granny plugin on xentax forum.

Edited August 13, 2021 by arlinamid

[Jawwad 3385]

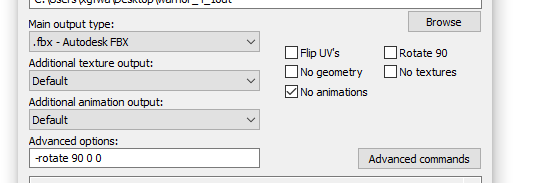

Noesis settings:

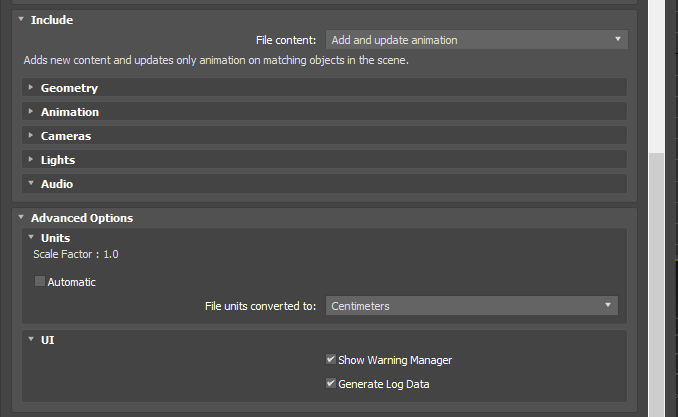

3ds max settings:



For me works really well.

If you don't check "No animations" box on noesis, make sure you have these settings.

Edited August 18, 2022 by Metin2 Dev
Core X - External 2 Internal

[Saitama 6]

Its still not working even with all these settings

What i did:
- noesis: "-rotate 90 0 0", checked "no anmiations", applied the settings from Jawwad
- 3ds max: applied all above mentioned settings

Im so confused, i dont know why its not working.. Its only the sholder and that i cant hold weapons ingame

I appreciate all your help so far! Here is the file im using, maybe its the file?:

This is the hidden content, please

• Sign In
• or
• Sign Up

[arlinamid 1076]

Tomorow i make a small video tutorial for you, if I had enough time.

[Saitama 6]

@arlinamid

Im so thankful and im appreciating the consideration already! Thanks you alot!
If you don't have time thats okay too!

[arlinamid 1076]

14 hours ago, Saitama said:

Its still not working even with all these settings

What i did:
- noesis: "-rotate 90 0 0", checked "no anmiations", applied the settings from Jawwad
- 3ds max: applied all above mentioned settings

Im so confused, i dont know why its not working.. Its only the sholder and that i cant hold weapons ingame

I appreciate all your help so far! Here is the file im using, maybe its the file?:

This is the hidden content, please

• Sign In
• or
• Sign Up

I checked your file, nothing wrong with it, everything works fine.

For test I used 3ds max 2018 + granny plugin

Noesis 4.44 +gr2reader126 version+ fbx 2017 plugin

https://metin2.download/picture/neKT0n5ZtWG7n9W09tMRU366dH631y6e/.png

https://metin2.download/picture/OZZKRCW3zsp2trO739CQ9GWHqdUgTH0t/.png

PS.: I dont know its important or not but i always used gr2reader plugin in noesis with pairing animation, you can set this in fmt_gr2readerXXX.py

ANIMATION_MODE = 1



Edited September 11, 2022 by Metin2 Dev
Core X - External 2 Internal

[vandaa95 902]

Have you tried Gr2 to smd with noesis?

[arlinamid 1076]

I make a tutorial in this forum. Check this
