How to Add 3 inventory

[ICe0707 0]

hi  Guys



I want to add 3 inventory in the source and the client



I want like this







I did not understand the

http://metin2dev.org/board/topic/791-metin2-4-inventory-page/





Thank you



Edited August 19, 2022 by Metin2 Dev
Core X - External 2 Internal

[V0iĐ 112]

Hi!

Try this:



find:

../common/length.h

INVENTORY_MAX_NUM       = 90,

Replace to:

INVENTORY_MAX_NUM       = 135,

Find:

../game/src/char_item.cpp

BYTE bPage = bCell / (INVENTORY_MAX_NUM / 2);

And:

BYTE bPage = bCell / (INVENTORY_MAX_NUM / 2);

Replace to:

BYTE bPage = bCell / (INVENTORY_MAX_NUM / 3);

And:

BYTE bPage = bCell / (INVENTORY_MAX_NUM / 3);

Find: (in the same file)

if (p / (INVENTORY_MAX_NUM / 2) != bPage)

And:

if (p / (INVENTORY_MAX_NUM / 2) != bPage)

Replace to:

if (p / (INVENTORY_MAX_NUM / 3) != bPage)

And:

if (p / (INVENTORY_MAX_NUM / 3) != bPage)

Find:

../game/src/exchange.cpp

static CGrid s_grid1(5, INVENTORY_MAX_NUM/5 / 2);
static CGrid s_grid2(5, INVENTORY_MAX_NUM/5 / 2);

Replace to:

static CGrid s_grid1(5, INVENTORY_MAX_NUM/5 / 3);
static CGrid s_grid2(5, INVENTORY_MAX_NUM/5 / 3);
static CGrid s_grid3(5, INVENTORY_MAX_NUM/5 / 3);

Find: (in the same file)

s_grid1.Clear();
s_grid2.Clear();

Replace to:

s_grid1.Clear();
s_grid2.Clear();
s_grid3.Clear();

and replace to your self..

for (i = 0; i < INVENTORY_MAX_NUM / 3; ++i)
    {
        if (!(item = victim->GetInventoryItem(i)))
            continue;

        s_grid1.Put(i, 1, item->GetSize());
    }
    for (i = INVENTORY_MAX_NUM / 3; i < INVENTORY_MAX_NUM; ++i)
    {
        if (!(item = victim->GetInventoryItem(i)))
            continue;

        s_grid2.Put(i - INVENTORY_MAX_NUM / 3, 1, item->GetSize());
    }

    for (i = INVENTORY_MAX_NUM / 3; i < INVENTORY_MAX_NUM; ++i)
    {
        if (!(item = victim->GetInventoryItem(i)))
            continue;

        s_grid3.Put(i - INVENTORY_MAX_NUM / 3, 1, item->GetSize());
    }

Client side:

Find:

../userinterface/gametype.h

const DWORD c_Inventory_Page_Count = 2;

Replace to:

const DWORD c_Inventory_Page_Count = 3;

Open inventorywindow.py:

EQUIPMENT_START_INDEX = 90

Replace to:

EQUIPMENT_START_INDEX = 135

[ICe0707 0]

Thank you

[ICe0707 0]

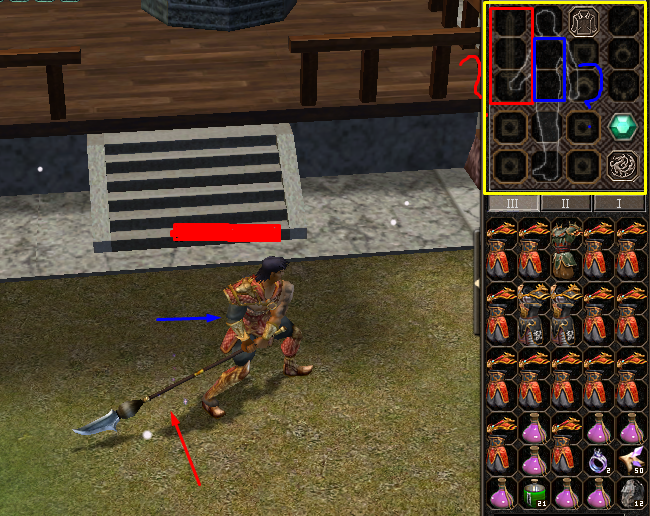

oh





There is a problem

Tools do not come in its place



Edited August 19, 2022 by Metin2 Dev
Core X - External 2 Internal

[V0iĐ 112]

Do you rewrite the EQUIPMET_START_INDEX in the inventorywindow.py?

[ICe0707 0]

yes

EQUIPMENT_START_INDEX = 135







{"index":EQUIPMENT_START_INDEX+0, "x":39, "y":37, "width":32, "height":64},

{"index":EQUIPMENT_START_INDEX+1, "x":39, "y":2, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+2, "x":39, "y":145, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+3, "x":75, "y":67, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+4, "x":3, "y":3, "width":32, "height":96},

{"index":EQUIPMENT_START_INDEX+5, "x":114, "y":67, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+6, "x":114, "y":35, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+7, "x":2, "y":145, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+8, "x":75, "y":145, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+9, "x":114, "y":2, "width":32, "height":32},

{"index":EQUIPMENT_START_INDEX+10, "x":75, "y":35, "width":32, "height":32},

## 새 반지1

{"index":item.EQUIPMENT_RING1, "x":2, "y":106, "width":32, "height":32},

## 새 반지2

{"index":item.EQUIPMENT_RING2, "x":75, "y":106, "width":32, "height":32},

## 새 벨트

{"index":item.EQUIPMENT_BELT, "x":39, "y":106, "width":32, "height":32},

[V0iĐ 112]

in the local_**.eix || .epk?

[ICe0707 0]

yes

[V0iĐ 112]

I don't know then! But rewrite in the beltinventory.py



open beltinventorywindow.py after search this

EQUIPMENT_START_INDEX = 90

replace to

EQUIPMENT_START_INDEX = 180

Edited April 3, 2015 by EzionX

[ICe0707 0]

I can not solve the problem, in fact I have a 5 inventory and I want to make it 3 How

[V0iĐ 112]

Upload your edited files please

[ICe0707 0]

get me your skype pls

[ICe0707 0]

• /game/src/exchange.cpp

1. static CGrid s_grid1(5, INVENTORY_MAX_NUM/5 / 2); // inven page 1
2. static CGrid s_grid2(5, INVENTORY_MAX_NUM/5 / 2); // inven page 2
3. static CGrid s_grid3(5, INVENTORY_MAX_NUM/5 / 2); // inven page 3
4. static CGrid s_grid4(5, INVENTORY_MAX_NUM/5 / 2); // inven page 4
5. static CGrid s_grid5(5, INVENTORY_MAX_NUM/5 / 2); // inven page 5
6.
7. s_grid1.Clear();
8. s_grid2.Clear();
9. s_grid3.Clear();
10. s_grid4.Clear();
11. s_grid5.Clear();
12.
13. LPCHARACTER victim = GetCompany()->GetOwner();
14. LPITEM item;
15.
16. int i;
17.
18. for (i = 0; i < INVENTORY_MAX_NUM / 5; ++i)
19. {
20. if (!(item = victim->GetInventoryItem(i)))
21. continue;
22.
23. s_grid1.Put(i, 1, item->GetSize());
24. }
25. for (i = INVENTORY_MAX_NUM / 5; i < INVENTORY_MAX_NUM; ++i)
26. {
27. if (!(item = victim->GetInventoryItem(i)))
28. continue;
29.
30. s_grid2.Put(i - INVENTORY_MAX_NUM / 5, 1, item->GetSize());
31. }
32. for (i = INVENTORY_MAX_NUM / 5; i < INVENTORY_MAX_NUM; ++i)
33. {
34. if (!(item = victim->GetInventoryItem(i)))
35. continue;
36.
37. s_grid3.Put(i - INVENTORY_MAX_NUM / 5, 1, item->GetSize());
38. }
39. for (i = INVENTORY_MAX_NUM / 5; i < INVENTORY_MAX_NUM; ++i)
40. {
41. if (!(item = victim->GetInventoryItem(i)))
42. continue;
43.
44. s_grid4.Put(i - INVENTORY_MAX_NUM / 5, 1, item->GetSize());
45. }
46. for (i = INVENTORY_MAX_NUM / 5; i < INVENTORY_MAX_NUM; ++i)
47. {
48. if (!(item = victim->GetInventoryItem(i)))
49. continue;
50.
51. s_grid5.Put(i - INVENTORY_MAX_NUM / 5, 1, item->GetSize());
52. }



1. int iPos = s_grid1.FindBlank(1, item->GetSize());

   if (iPos >= 0)
   {
   s_grid1.Put(iPos, 1, item->GetSize());
   }
   else
   {
   iPos = s_grid2.FindBlank(1, item->GetSize());

   if (iPos >= 0)
   {
   s_grid2.Put(iPos, 1, item->GetSize());
   }
   else
   {
   iPos = s_grid3.FindBlank(1, item->GetSize());

   if (iPos >= 0)
   {
   s_grid3.Put(iPos, 1, item->GetSize());
   }
   else
   {
   iPos = s_grid4.FindBlank(1, item->GetSize());

   if (iPos >= 0)
   {
   s_grid4.Put(iPos, 1, item->GetSize());
   }
   else
   {
   iPos = s_grid5.FindBlank(1, item->GetSize());

   if (iPos >= 0)
   {
   s_grid5.Put(iPos, 1, item->GetSize());
   }
   else
   {
   return false;
   }
   }
   }
   }
   }
   }
   }

   return true;
   }

|___________________________________________________



• /game/src/char_item.cpp

1. bPage = bCell / (INVENTORY_MAX_NUM / 5);
2. the 4

• sourcecommonlength.h

1. INVENTORY_MAX_NUM = 225,

• ClientUserInterfaceGameType.h

1. const DWORD c_Inventory_Page_Size = 5*9; // x*y
2. const DWORD c_Inventory_Page_Count = 5;

[ICe0707 0]

1. I want 3 inventory

[ICe0707 0]

plz  Guys

help me

[Alina 228]

No, belt_inventory does not cause this error.

It's the inventory size clientside, not only the py-part but also the binary.

Equipment is normally stored at the end of your normal inventory. The server now has 135 as the inventory size (45 more than the prior 90) so the equipment starts with index 136 there. But the client still thinks that the inventory size is just 90, so the equipment starts at 91 there. That's the mismatch you can see. When equipping something, the server will move the item to the proper index, so it's at 136+, not 91+ like the client has it



In GameType.h change

const DWORD c_Inventory_Page_Count = 2;

to

const DWORD c_Inventory_Page_Count = 3;

and make sure you've recompiled everything after raising the inventory size serverside to 135. Then everything should work

[ICe0707 0]

ok But  my client



inventorywindow.py



• EQUIPMENT_START_INDEX = 135

I did everything

[Alina 228]

It's not a problem with the py-files, it's a problem with the source. Did you do that too?

[ICe0707 0]

yes



look the



exchange.cpp



1. int iPos = s_grid1.FindBlank(1, item->GetSize());
2.
3. if (iPos >= 0)
4. {
5. s_grid1.Put(iPos, 1, item->GetSize());
6. }
7. else
8. {
9. iPos = s_grid2.FindBlank(1, item->GetSize());
10.
11. if (iPos >= 0)
12. {
13. s_grid2.Put(iPos, 1, item->GetSize());
14. }
15. else
16. {
17.        iPos = s_grid3.FindBlank(1, item->GetSize());
18.
19. if (iPos >= 0)
20. {
21. s_grid3.Put(iPos, 1, item->GetSize());
22. }
23. else
24. {
25. return false;
26. }
27. }
28. }
29. }
30. }
31. }

[V0iĐ 112]



oh





There is a problem

Tools do not come in its place





It's not a problem with the py-files, it's a problem with the source. Did you do that too?

Please rewrite the EQUIPMENT_START_INDEX in the inventorywindow.py and look what happen!

Edited August 19, 2022 by Metin2 Dev
Core X - External 2 Internal

[ICe0707 0]

this inventorywindow.py

1. import uiScriptLocale
2. import item
3.
4. EQUIPMENT_START_INDEX = 135
5.
6. window = {
7. "name" : "InventoryWindow",
8.
9. ## 600 - (width + 오른쪽으로 부터 띄우기 24 px)
10. "x" : SCREEN_WIDTH - 176,
11. "y" : SCREEN_HEIGHT - 37 - 565,
12.
13. "style" : ("movable", "float",),
14.
15. "width" : 176,
16. "height" : 565,
17.
18. "children" :
19. (
20. ## Inventory, Equipment Slots
21. {
22. "name" : "board",
23. "type" : "board",
24. "style" : ("attach",),
25.
26. "x" : 0,
27. "y" : 0,
28.
29. "width" : 176,
30. "height" : 565,
31.
32. "children" :
33. (
34. ## Title
35. {
36. "name" : "TitleBar",
37. "type" : "titlebar",
38. "style" : ("attach",),
39.
40. "x" : 8,
41. "y" : 7,
42.
43. "width" : 161,
44. "color" : "yellow",
45.
46. "children" :
47. (
48. { "name":"TitleName", "type":"text", "x":77, "y":3, "text":uiScriptLocale.INVENTORY_TITLE, "text_horizontal_align":"center" },
49. ),
50. },
51.
52. ## Equipment Slot
53. {
54. "name" : "Equipment_Base",
55. "type" : "image",
56.
57. "x" : 10,
58. "y" : 33,
59.
60. "image" : "d:/ymir work/ui/equipment_bg_without_ring.tga",
61.
62. "children" :
63. (
64.
65. {
66. "name" : "EquipmentSlot",
67. "type" : "slot",
68.
69. "x" : 3,
70. "y" : 3,
71.
72. "width" : 150,
73. "height" : 182,
74.
75. "slot" : (
76. {"index":EQUIPMENT_START_INDEX+0, "x":39, "y":37, "width":32, "height":64},
77. {"index":EQUIPMENT_START_INDEX+1, "x":39, "y":2, "width":32, "height":32},
78. {"index":EQUIPMENT_START_INDEX+2, "x":39, "y":145, "width":32, "height":32},
79. {"index":EQUIPMENT_START_INDEX+3, "x":75, "y":67, "width":32, "height":32},
80. {"index":EQUIPMENT_START_INDEX+4, "x":3, "y":3, "width":32, "height":96},
81. {"index":EQUIPMENT_START_INDEX+5, "x":114, "y":67, "width":32, "height":32},
82. {"index":EQUIPMENT_START_INDEX+6, "x":114, "y":35, "width":32, "height":32},
83. {"index":EQUIPMENT_START_INDEX+7, "x":2, "y":145, "width":32, "height":32},
84. {"index":EQUIPMENT_START_INDEX+8, "x":75, "y":145, "width":32, "height":32},
85. {"index":EQUIPMENT_START_INDEX+9, "x":114, "y":2, "width":32, "height":32},
86. {"index":EQUIPMENT_START_INDEX+10, "x":75, "y":35, "width":32, "height":32},
87. ## 새 반지1
88. {"index":item.EQUIPMENT_RING1, "x":2, "y":106, "width":32, "height":32},
89. ## 새 반지2
90. {"index":item.EQUIPMENT_RING2, "x":75, "y":106, "width":32, "height":32},
91. ## 새 벨트
92. {"index":item.EQUIPMENT_BELT, "x":39, "y":106, "width":32, "height":32},
93. ),
94. },
95. ## Dragon Soul Button
96. {
97. "name" : "DSSButton",
98. "type" : "button",
99.
100. "x" : 114,
101. "y" : 107,
102.
103. "tooltip_text" : uiScriptLocale.TASKBAR_DRAGON_SOUL,
104.
105. "default_image" : "d:/ymir work/ui/dragonsoul/dss_inventory_button_01.tga",
106. "over_image" : "d:/ymir work/ui/dragonsoul/dss_inventory_button_02.tga",
107. "down_image" : "d:/ymir work/ui/dragonsoul/dss_inventory_button_03.tga",
108. },
109. ## MallButton
110. {
111. "name" : "MallButton",
112. "type" : "button",
113.
114. "x" : 118,
115. "y" : 148,
116.
117. "tooltip_text" : uiScriptLocale.MALL_TITLE,
118.
119. "default_image" : "d:/ymir work/ui/game/TaskBar/Mall_Button_01.tga",
120. "over_image" : "d:/ymir work/ui/game/TaskBar/Mall_Button_02.tga",
121. "down_image" : "d:/ymir work/ui/game/TaskBar/Mall_Button_03.tga",
122. },
123. ## CostumeButton
124. {
125. "name" : "CostumeButton",
126. "type" : "button",
127.
128. "x" : 78,
129. "y" : 5,
130.
131. "tooltip_text" : uiScriptLocale.COSTUME_TITLE,
132.
133. "default_image" : "d:/ymir work/ui/game/taskbar/costume_Button_01.tga",
134. "over_image" : "d:/ymir work/ui/game/taskbar/costume_Button_02.tga",
135. "down_image" : "d:/ymir work/ui/game/taskbar/costume_Button_03.tga",
136. },
137. {
138. "name" : "Equipment_Tab_01",
139. "type" : "radio_button",
140.
141. "x" : 86,
142. "y" : 161,
143.
144. "default_image" : "d:/ymir work/ui/game/windows/tab_button_small_01.sub",
145. "over_image" : "d:/ymir work/ui/game/windows/tab_button_small_02.sub",
146. "down_image" : "d:/ymir work/ui/game/windows/tab_button_small_03.sub",
147.
148. "children" :
149. (
150. {
151. "name" : "Equipment_Tab_01_Print",
152. "type" : "text",
153.
154. "x" : 0,
155. "y" : 0,
156.
157. "all_align" : "center",
158.
159. "text" : "I",
160. },
161. ),
162. },
163. {
164. "name" : "Equipment_Tab_02",
165. "type" : "radio_button",
166.
167. "x" : 86 + 32,
168. "y" : 161,
169.
170. "default_image" : "d:/ymir work/ui/game/windows/tab_button_small_01.sub",
171. "over_image" : "d:/ymir work/ui/game/windows/tab_button_small_02.sub",
172. "down_image" : "d:/ymir work/ui/game/windows/tab_button_small_03.sub",
173.
174. "children" :
175. (
176. {
177. "name" : "Equipment_Tab_02_Print",
178. "type" : "text",
179.
180. "x" : 0,
181. "y" : 0,
182.
183. "all_align" : "center",
184.
185. "text" : "II",
186. },
187. ),
188. },
189.
190. ),
191. },
192.
193.                 {
194.                     "name" : "Inventory_Tab_01",
195.                     "type" : "radio_button",
196.                     "x" : 10,
197.                     "y" : 222,
198.                     "default_image" : "d:/ymir work/ui/game/windows/tab_button_small_01.sub",
199.                     "over_image" : "d:/ymir work/ui/game/windows/tab_button_small_02.sub",
200.                     "down_image" : "d:/ymir work/ui/game/windows/tab_button_small_03.sub",
201.                     "tooltip_text" : uiScriptLocale.INVENTORY_PAGE_BUTTON_TOOLTIP_1,
202.                     "children" :
203.                     (
204.                         {
205.                             "name" : "Inventory_Tab_01_Print",
206.                             "type" : "text",
207.                             "x" : 0,
208.                             "y" : 0,
209.                             "all_align" : "center",
210.                             "text" : "I",
211.                         },
212.                     ),
213.                 },
214.                 {
215.                     "name" : "Inventory_Tab_02",
216.                     "type" : "radio_button",
217.                     "x" : 40,
218.                     "y" : 222,
219.                     "default_image" : "d:/ymir work/ui/game/windows/tab_button_small_01.sub",
220.                     "over_image" : "d:/ymir work/ui/game/windows/tab_button_small_02.sub",
221.                     "down_image" : "d:/ymir work/ui/game/windows/tab_button_small_03.sub",
222.                     "tooltip_text" : uiScriptLocale.INVENTORY_PAGE_BUTTON_TOOLTIP_2,
223.                     "children" :
224.                     (
225.                         {
226.                             "name" : "Inventory_Tab_02_Print",
227.                             "type" : "text",
228.                             "x" : 0,
229.                             "y" : 0,
230.                             "all_align" : "center",
231.                             "text" : "II",
232.                         },
233.                     ),
234.                 },
235.                 {
236.                     "name" : "Inventory_Tab_03",
237.                     "type" : "radio_button",
238.                     "x" : 70,
239.                     "y" : 222,
240.                     "default_image" : "d:/ymir work/ui/game/windows/tab_button_small_01.sub",
241.                     "over_image" : "d:/ymir work/ui/game/windows/tab_button_small_02.sub",
242.                     "down_image" : "d:/ymir work/ui/game/windows/tab_button_small_03.sub",
243.                     "tooltip_text" : uiScriptLocale.INVENTORY_PAGE_BUTTON_TOOLTIP_3,
244.                     "children" :
245.                     (
246.                         {
247.                             "name" : "Inventory_Tab_03_Print",
248.                             "type" : "text",
249.                             "x" : 0,
250.                             "y" : 0,
251.                             "all_align" : "center",
252.                             "text" : "III",
253.                         },
254.                     ),
255.                 },
256.
257. ## Item Slot
258. {
259. "name" : "ItemSlot",
260. "type" : "grid_table",
261.
262. "x" : 8,
263. "y" : 246,
264.
265. "start_index" : 0,
266. "x_count" : 5,
267. "y_count" : 9,
268. "x_step" : 32,
269. "y_step" : 32,
270.
271. "image" : "d:/ymir work/ui/public/Slot_Base.sub"
272. },
273.
274. ## Print
275. {
276. "name":"Money_Slot",
277. "type":"button",
278.
279. "x":8,
280. "y":28,
281.
282. "horizontal_align":"center",
283. "vertical_align":"bottom",
284.
285. "default_image" : "d:/ymir work/ui/public/parameter_slot_05.sub",
286. "over_image" : "d:/ymir work/ui/public/parameter_slot_05.sub",
287. "down_image" : "d:/ymir work/ui/public/parameter_slot_05.sub",
288.
289. "children" :
290. (
291. {
292. "name":"Money_Icon",
293. "type":"image",
294.
295. "x":-18,
296. "y":2,
297.
298. "image":"d:/ymir work/ui/game/windows/money_icon.sub",
299. },
300.
301. {
302. "name" : "Money",
303. "type" : "text",
304.
305. "x" : 3,
306. "y" : 3,
307.
308. "horizontal_align" : "right",
309. "text_horizontal_align" : "right",
310.
311. "text" : "123456789",
312. },
313. ),
314. },
315.
316. ),
317. },
318. ),
319. }

[V0iĐ 112]

I told Alina, but i don't know what could be a problem sorry

[ICe0707 0]

np Thank you

[ICe0707 0]

  So far, I did not know to solve the problem

[Aurora 46]

What you need is:

- This guide:

- Working brains (Because you want 3 inventorys so you have to delete some codes)

And dont use the Binary from that tutorial you need to compile your own because you want 3 inventorys instead of 4.
